Pure Electric Servo Feeding System vs. Traditional Pneumatic Feeding: Which One Actually Saves You Money?

How Each System Works

Pneumatic feeding systems use compressed air to drive pistons that push Part A and Part B silicone components from the drums into the mixing and metering unit. They've been the industry standard for decades because they're simple, low-cost to install, and easy to maintain.

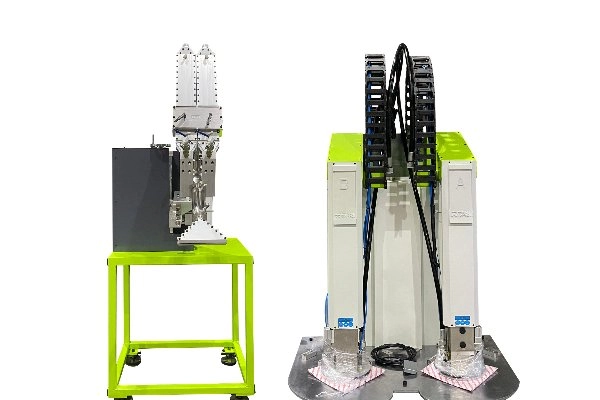

Pure electric servo feeding systems replace air-driven pistons with servo motors and precision ball screws. Every stroke is controlled digitally — speed, pressure, and position are monitored and adjusted in real time by the control system, rather than relying on air pressure that fluctuates with your factory's compressed air supply.

Where the Real Differences Show Up

1. Metering Accuracy

Pneumatic systems depend on stable air pressure to maintain a consistent A:B mixing ratio. In practice, most factories see pressure fluctuations throughout the day — especially when multiple machines share one air compressor. This shows up as small variations in shot weight and cure consistency.

Electric servo systems hold mixing ratio accuracy within a much tighter tolerance because the motor position is a closed-loop, digitally controlled value, not a function of ambient air pressure. For medical, infant care, and precision electronics parts where tolerance really matters, this difference is not cosmetic — it directly affects your reject rate.

2. Energy Consumption

Air compressors are expensive to run continuously, and a large portion of that energy is lost as heat and pressure drop in the piping. Electric servo systems only draw power during the actual feeding stroke, and many factories report meaningfully lower energy costs per shift after switching, particularly on lines running multiple shifts per day.

3. Maintenance and Long-Term Reliability

Pneumatic systems require ongoing maintenance of air filters, regulators, seals, and the air supply network itself — moisture in compressed air is a common cause of component wear. Electric servo systems have fewer wear parts in the feeding path itself, which tends to mean lower long-term maintenance costs, though the upfront investment is higher.

4. Response Speed and Control

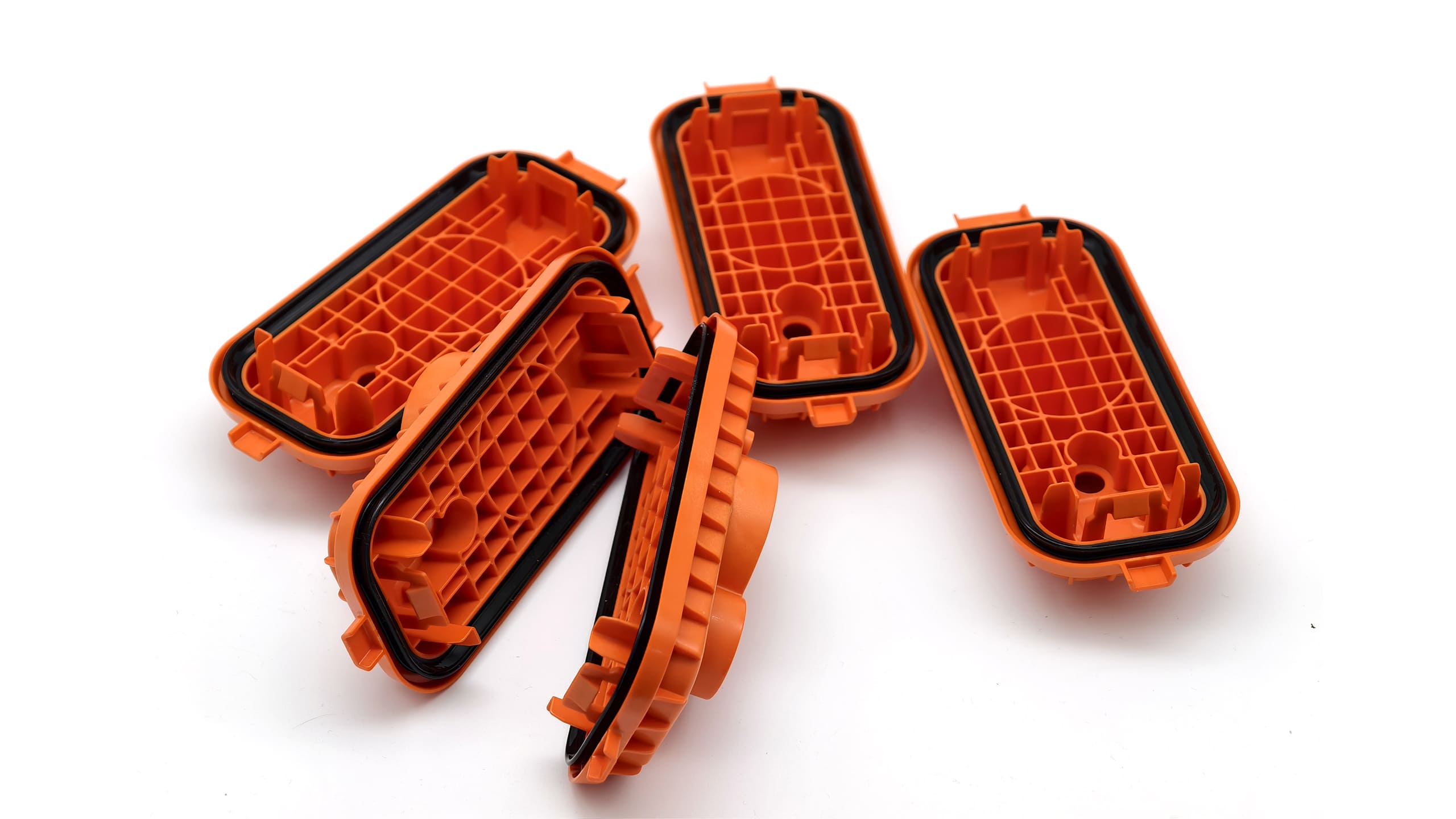

Servo motors respond to control signals faster and more precisely than pneumatic actuators, which have to overcome air compressibility before motion even starts. For high-cycle, high-precision production — think automotive connector seals or multi-cavity medical part molds — this translates into more repeatable cycle times.

5. Noise and Factory Environment

Pneumatic systems are noisier, both from the compressor and from air exhaust at each cycle. Electric servo systems run significantly quieter, which matters if you're trying to meet stricter factory noise regulations in the EU or North America.

Which One Should You Choose?

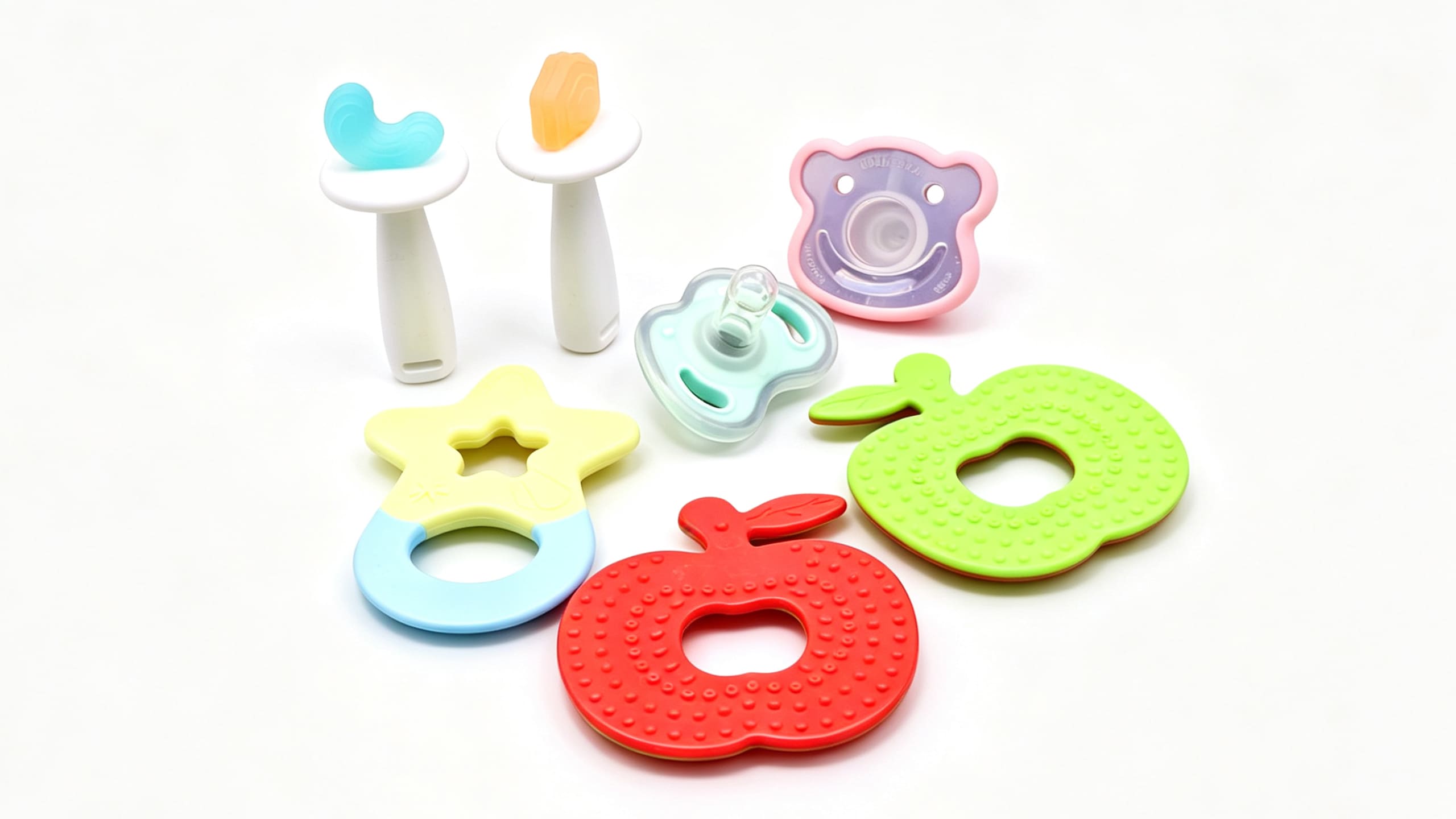

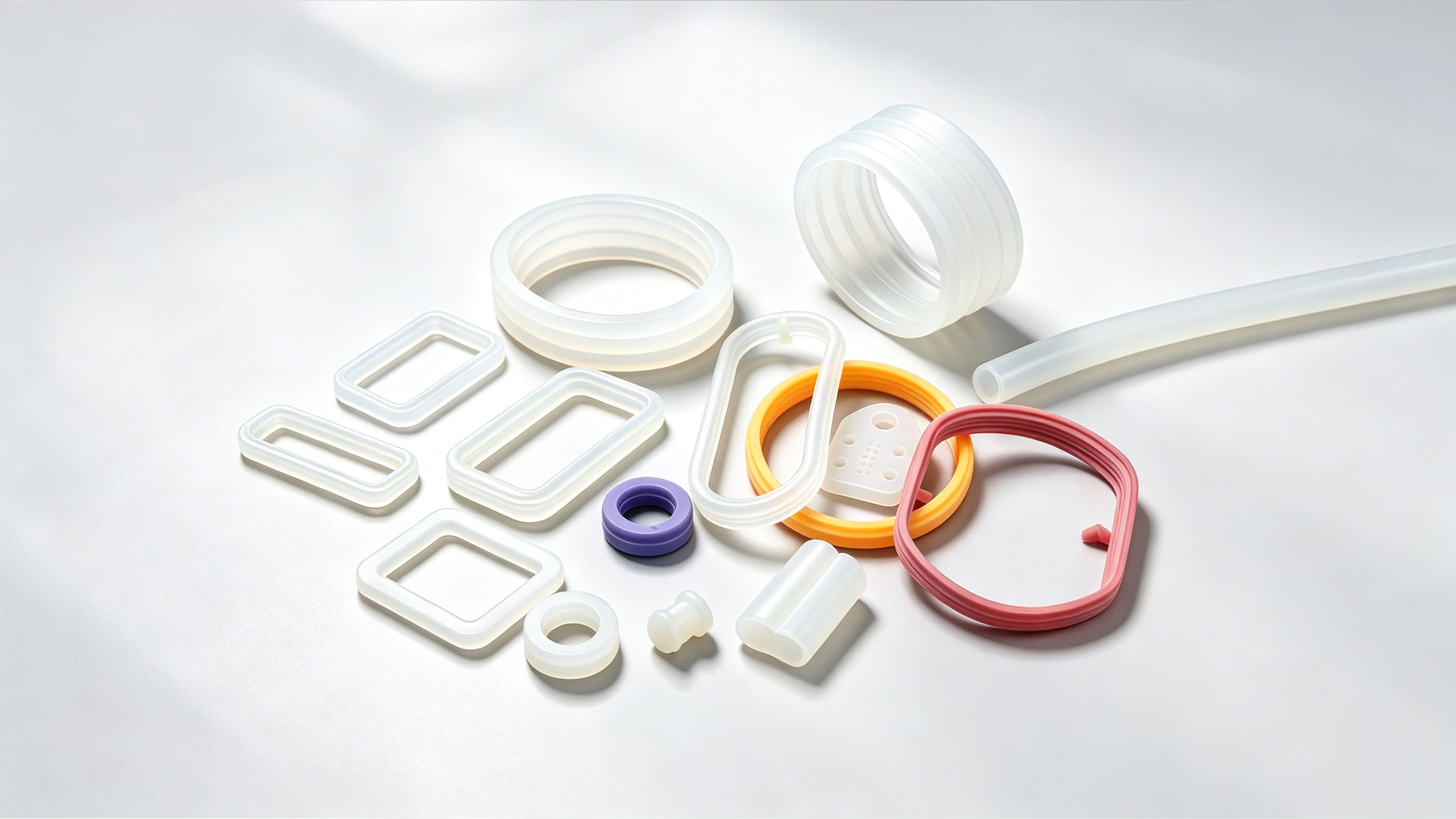

If your product tolerances are forgiving and your priority is minimizing upfront capital cost, a well-maintained pneumatic system still does a solid job. But if you're producing medical devices, baby feeding products, or automotive sealing components where shot-to-shot consistency directly affects your certification and reject rate, the accuracy and long-term cost advantage of a pure electric servo feeding system usually pays for itself.

About TYM's Electric Servo Feeding Systems

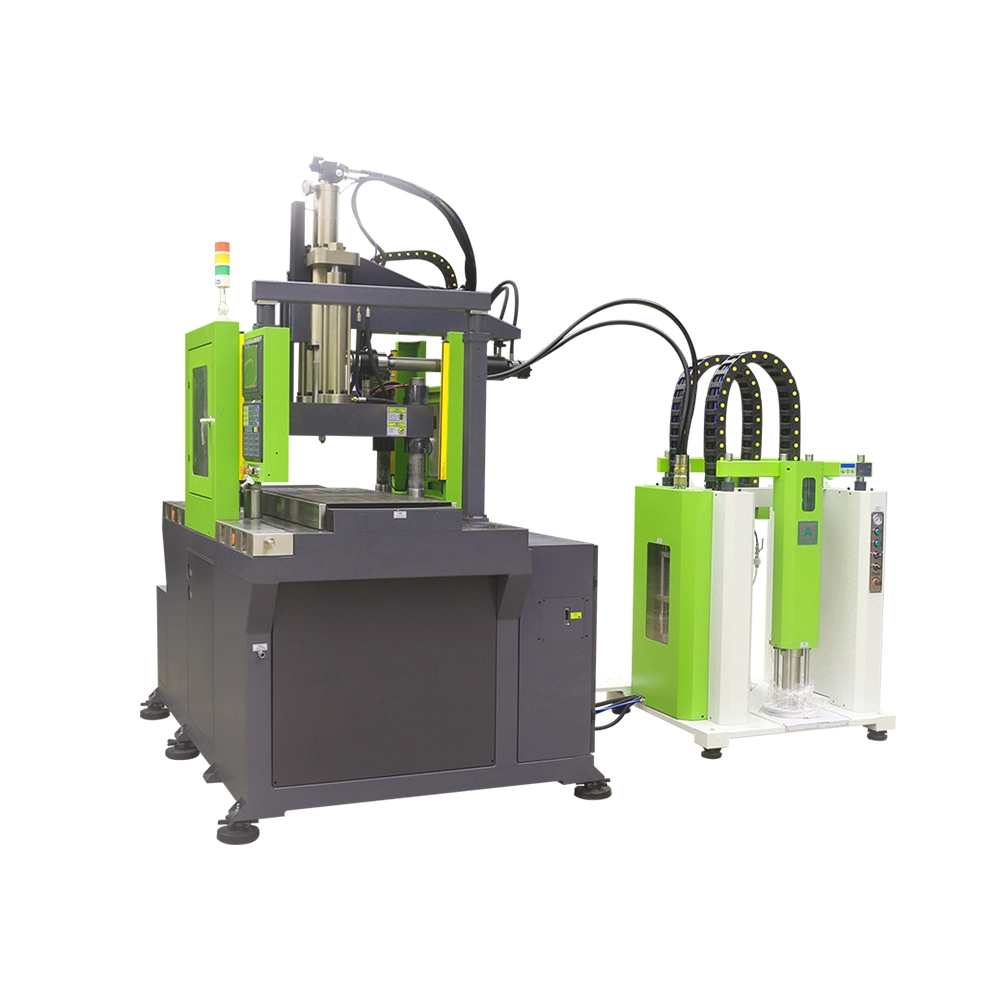

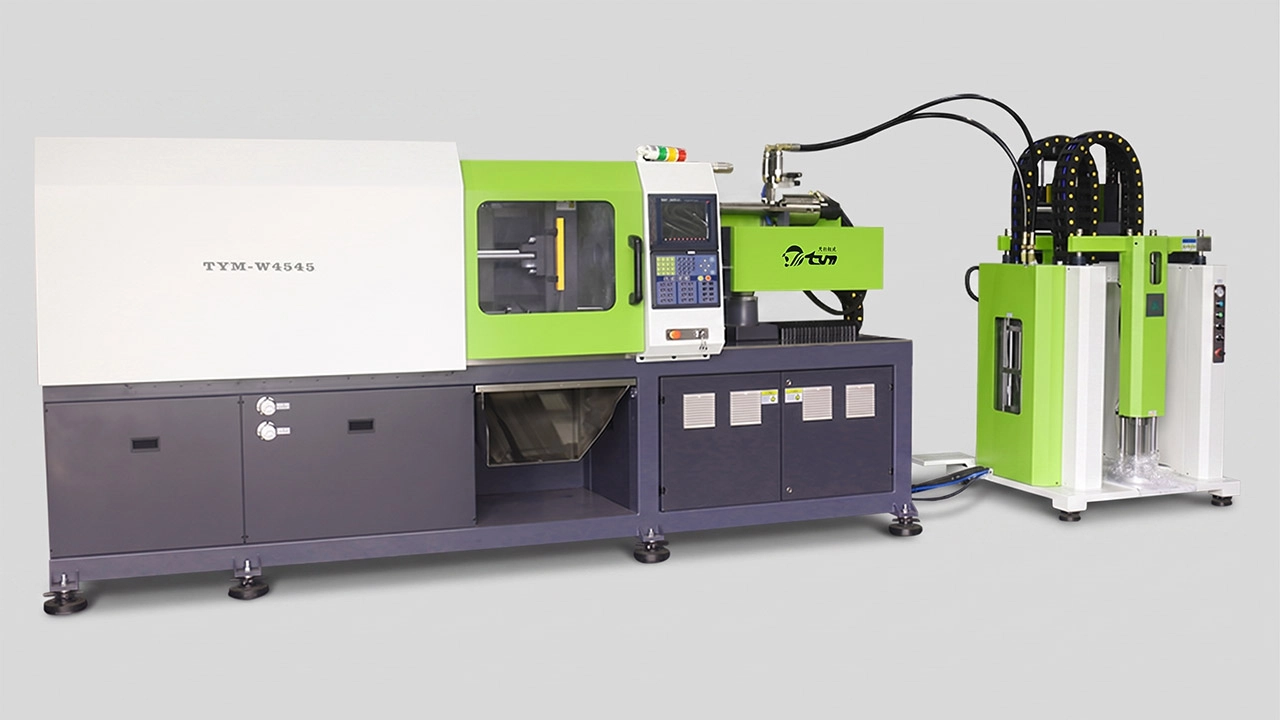

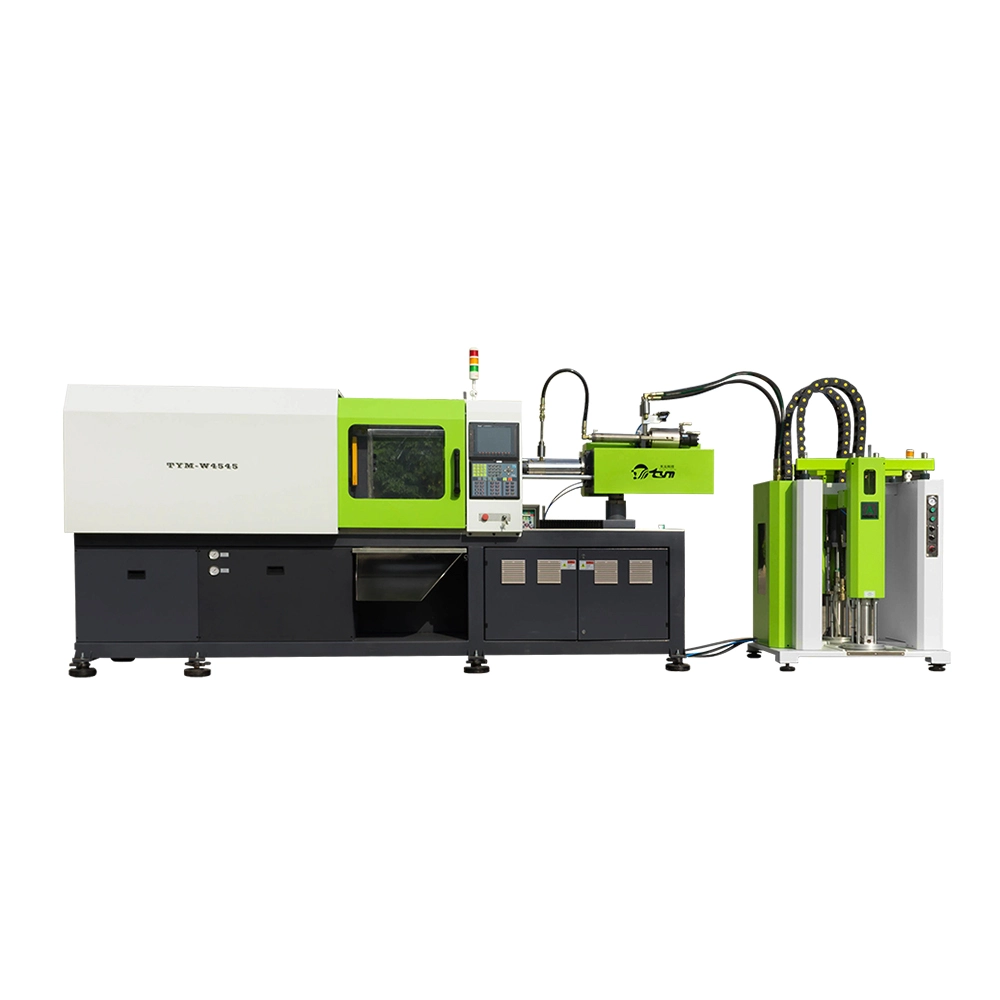

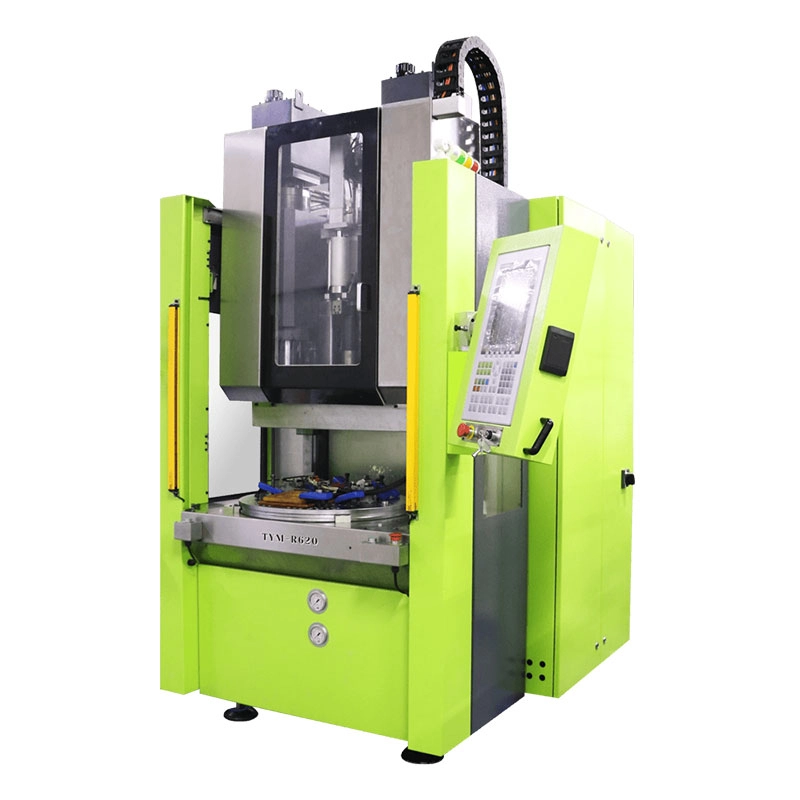

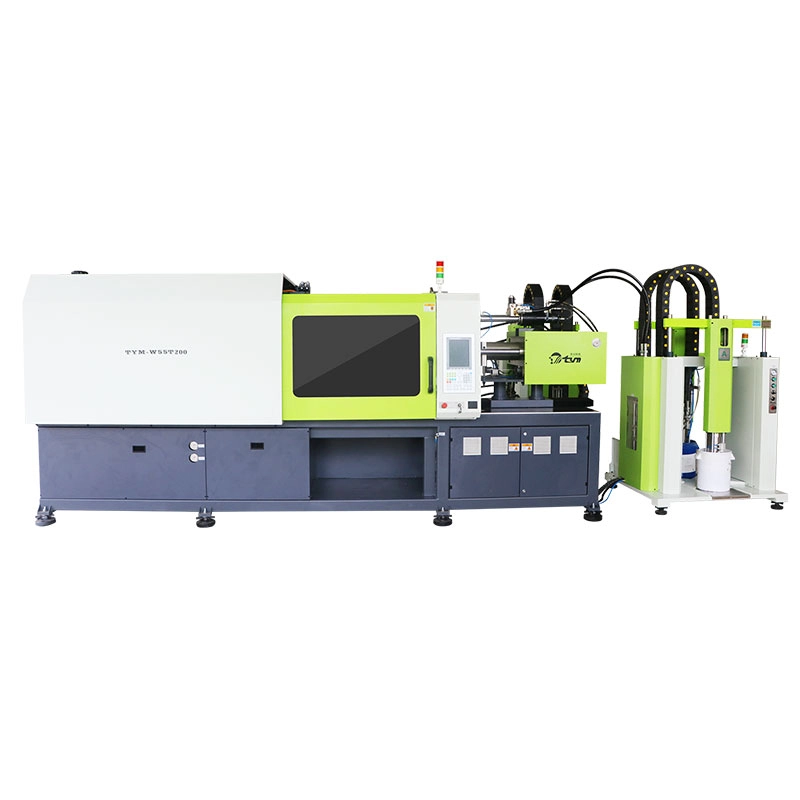

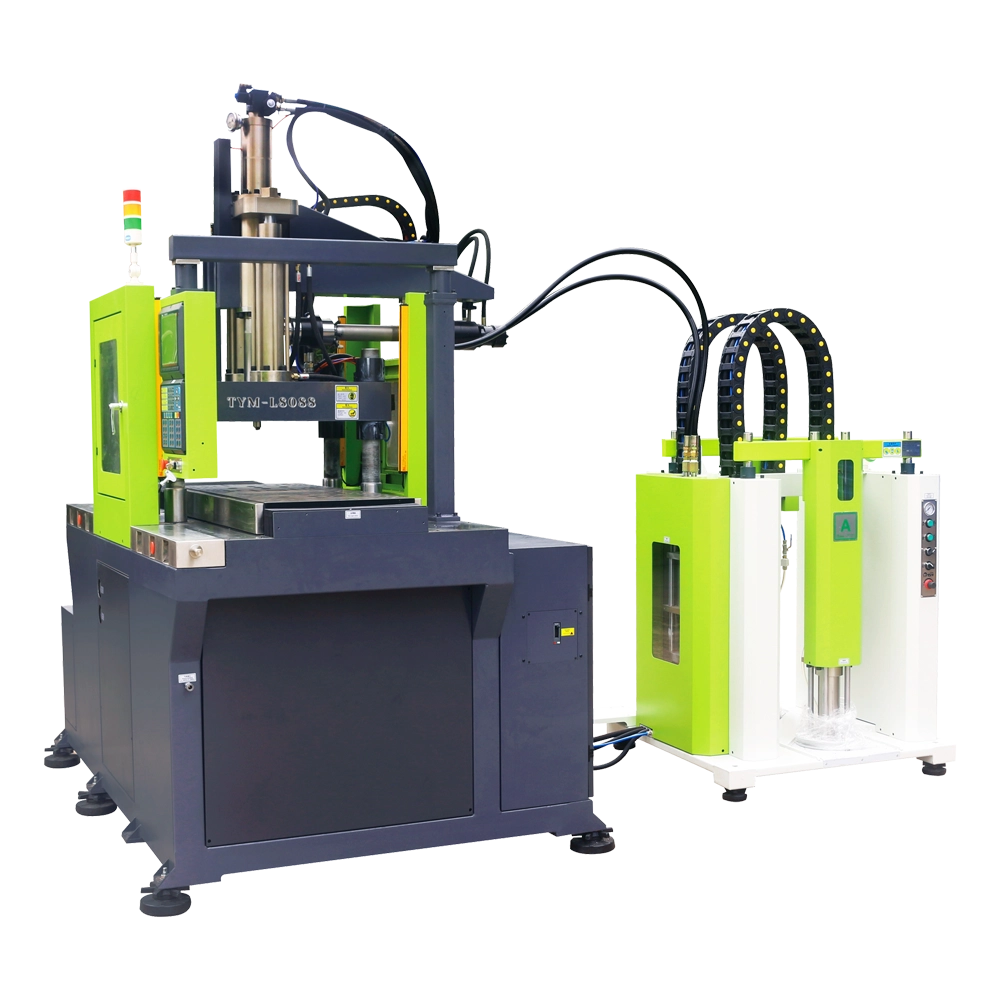

TYM designs and manufactures pure electric servo feeding systems as part of our integrated LSR injection molding machine lines, built in-house alongside our horizontal, vertical, and double-color injection machines. Our systems are engineered to hold tight mixing ratios batch after batch, with the same ISO 9001, CE, and CCC certified quality standards applied across our full product range.

If you're evaluating your next LSR production line and want to compare feeding technologies for your specific product, our engineering team is happy to walk through the numbers with you based on your actual part specs and output targets.
