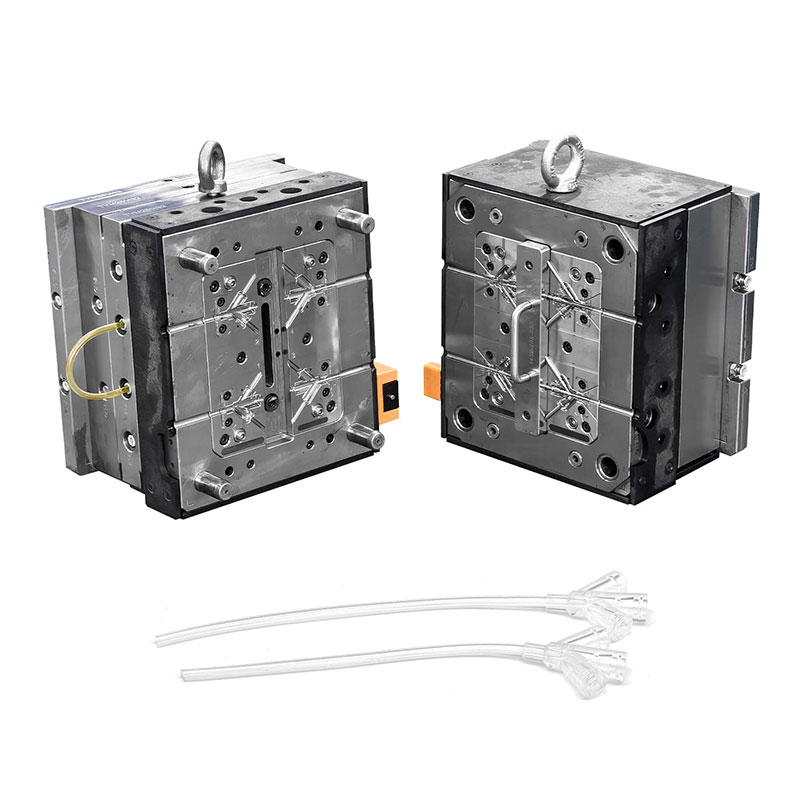

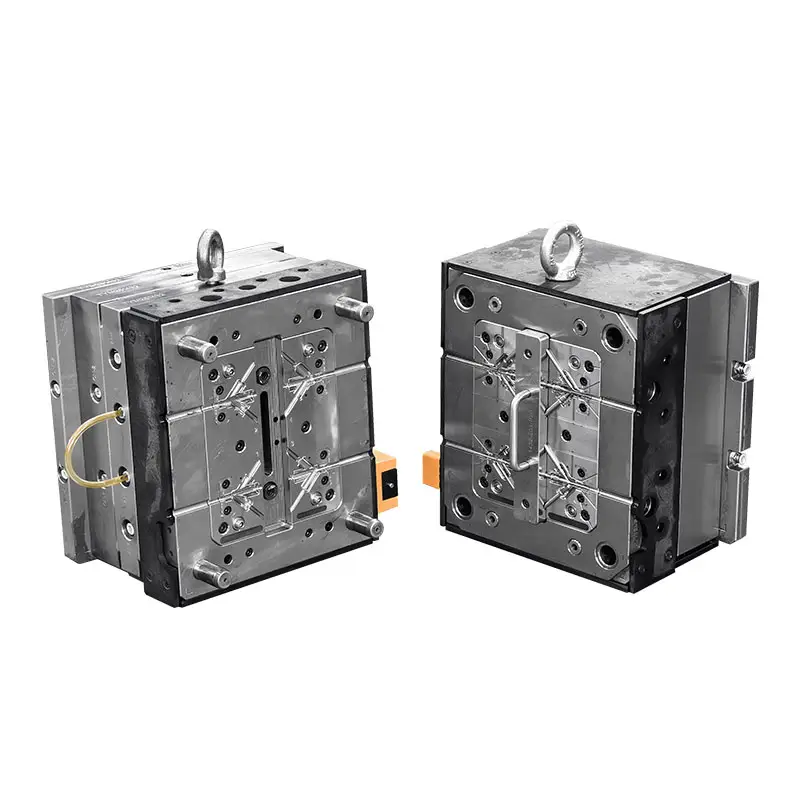

Core Movable Mold: One Mold Base, Multiple Sizes, Lower Tooling Investment

The defining feature of the core movable mold is its combination of movable core bars and exchangeable inserts — all built on the same mold base. This allows manufacturers to switch between different product sizes or variants using the same base structure, without developing a full new mold for each size. For customers who frequently switch product models, or who need multiple size variants within one product line, this significantly reduces total tooling investment and changeover time.

This mold structure is particularly well-suited for pacifiers and connecting hoses — baby-care and medical silicone products that often require simultaneous production across multiple size ranges (e.g., pacifiers for different age groups). The core movable design lets manufacturers flexibly meet multi-size market demand with a single base mold.

Key Advantages

● Movable core bar design accommodates special demolding path requirements

● Exchangeable inserts enable "one mold, multiple products," reducing total tooling cost

● Fast changeover, ideal for multi-SKU, small-batch, quick-iteration order patterns

● Proven in pacifier, tubing, and other baby-care/medical silicone applications

Typical Applications Pacifiers, connecting hoses, catheters, and other baby-care/medical silicone products requiring multi-size production switching.

Industry	Typical Products
Auto Electronics	Wire harness seals with internal sealing grooves, internally-threaded connectors
Medical Devices	Catheter connectors with internal one-way valve structures, internally-threaded fittings
Baby Care	Bottle valves with internal check-valve structures
New Energy Components	Battery seal rings and connector seals with internal recessed grooves



The core movable (lifter) mold uses lifters or core-pulling mechanisms specifically to address undercut features on a part's inner wall — internal threads, grooves, or recessed structures. Since these mechanisms sit inside the part rather than outside, this is the key molding solution for products with complex internal geometry, such as internally-threaded fittings, check valves, and battery seal rings.



Applications of Core Movable LSR Molds

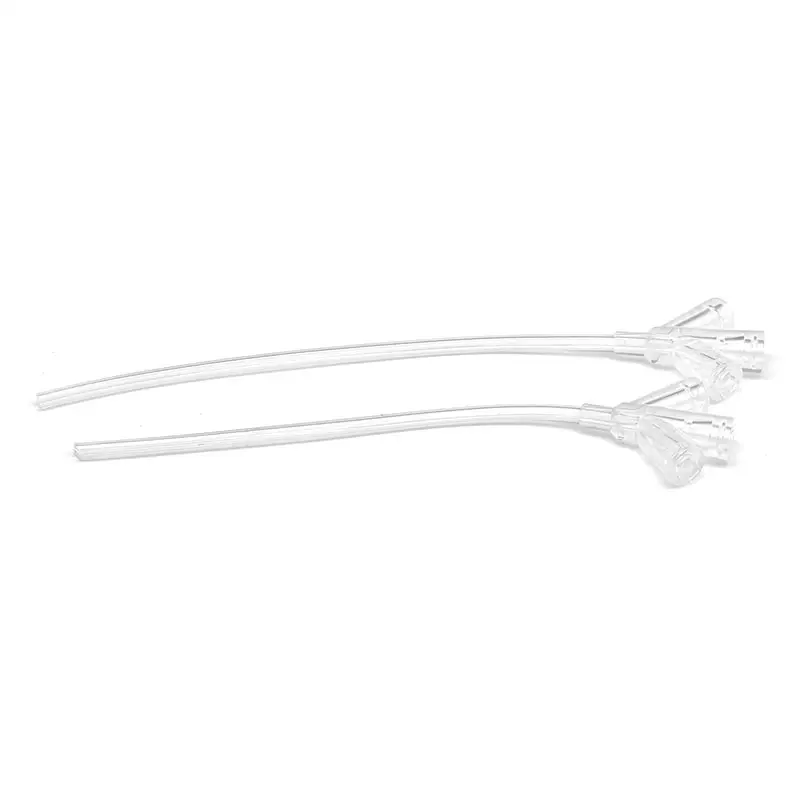

Core movable LSR molds are used for liquid silicone rubber parts that require internal channels, curved structures, interchangeable inserts, or complex core-pulling designs. TYM supports mold engineering for silicone tubing, pacifier-related parts, connector seals, airway components, and other molded silicone parts with internal or undercut structures.

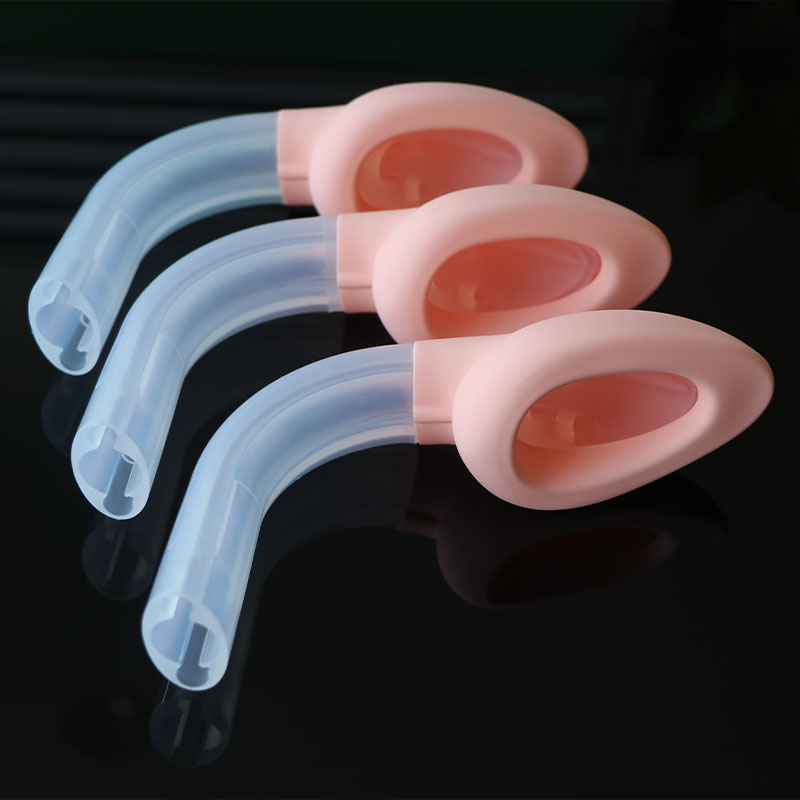

Laryngeal Mask Airway (LMA)

A medical airway device with a curved hollow tube and an inflatable sealing cuff, formed using amovable-core mold to shape the internal air channel and curved geometry before the core retracts for demolding. This part is used in anesthesia and emergency airway management, where the soft silicone cuff seals gently against the patient's airway.

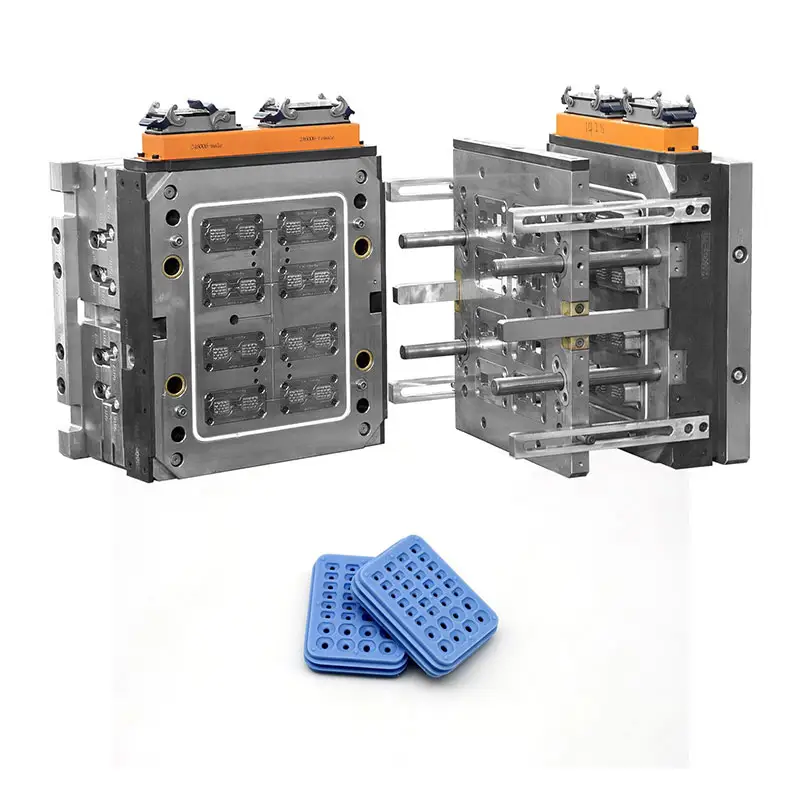

New Energy Vehicle Connector Seal

A multi-pin waterproof seal insert formed with a movable core to create the internal pin channelsrunning through the connector body. These seals are fitted inside new-energy vehicle (NEV) wiring connectors and battery/motor harnesses, protecting the electrical contacts from moisture,dust, and vibration.
