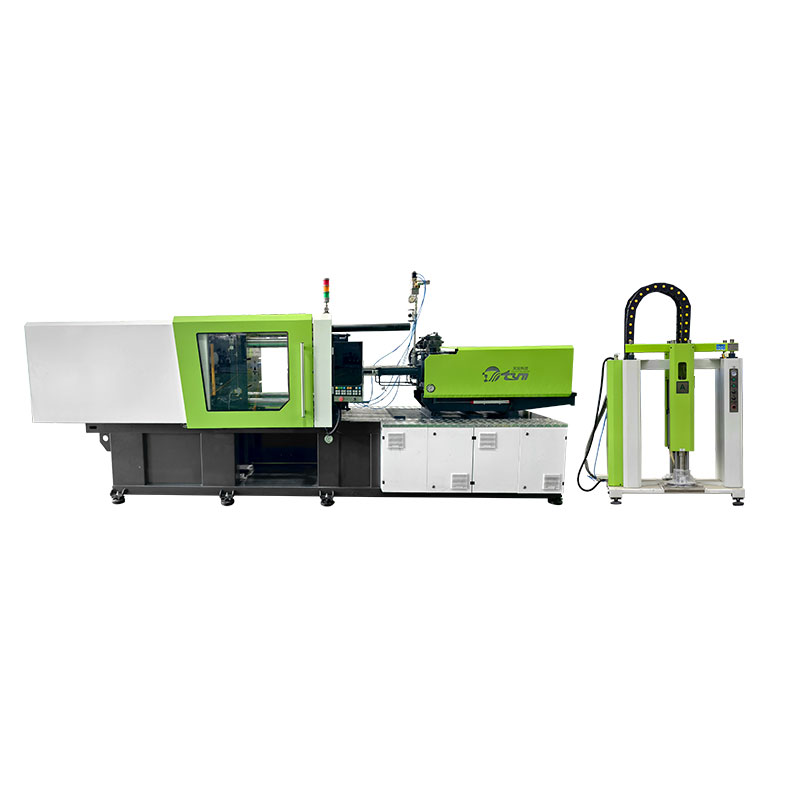

Horizontal Hinged Lsr Injection Molding Machine
Direct pressure mold opening and closing system.It's more suitable for producing the LSR parts which can be automatically removed from the mold.
Core Advantages of Horizontal Hinged LSR Injection Molding
TYM horizontal hinged LSR injection molding machines are designed for liquid silicone rubber production that requires stable clamping, precise injection control, reliable LSR dosing, and coordinated machine operation. This silicone molding equipment can be matched with precision LSR molds, dosing systems, and automation options for application-specific silicone molding projects.
Horizontal Hinged LSR Machine Specifications
Compare TYM horizontal hinged LSR injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and opening stroke. These specifications help manufacturers evaluate suitable silicone molding equipment for liquid silicone rubber production, precision silicone parts, sealing components, and application-specific molding projects.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
| TYM-W170 | 450g (custom made) | 150g/s | 700kg/cm² | 170T | 180-955mm | 450*450mm | 5T | 140mm | 20Mpa | 5.5T | 22.6KW | 5.4*1.4*2.1m |
| TYM-W230 | 450g (custom made) | 150g/s | 700kg/cm² | 230T | 200-1025mm | 500*500mm | 7T | 145mm | 20Mpa | 6.5T | 30.2KW | 5.7*1.7*2.1m |
| TYM-W280 | 450g (custom made) | 150g/s | 700kg/cm² | 280T | 220-1140mm | 550*550mm | 8T | 150mm | 20Mpa | 8T | 37.7KW | 6.1*1.6*2.2m |
Application Fields for Horizontal Hinged LSR Molding
TYM horizontal hinged LSR injection molding machines support liquid silicone rubber production for application-specific silicone molding projects. This LSR machine can be used with silicone molding equipment, dosing systems, and precision molds to produce silicone components for medical, baby care, automotive, new energy, consumer electronics, and industrial applications.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
Related LSR Machines, Molds & Dosing Systems
Explore related TYM solutions for liquid silicone rubber production, including LSR injection molding machines, precision silicone molds, dosing systems, and supporting equipment for different molding applications.
Content you may be interested in
Request a Quote & Technical Consultation
Interested in our Horizontal LSR Injection Molding Machines? Please share your specific molding requirements and production goals below. Our engineering team will contact you shortly with detailed pricing and a tailored solution.
Have a project in mind? Talk to our LSR experts and get a tailored turnkey solution.
