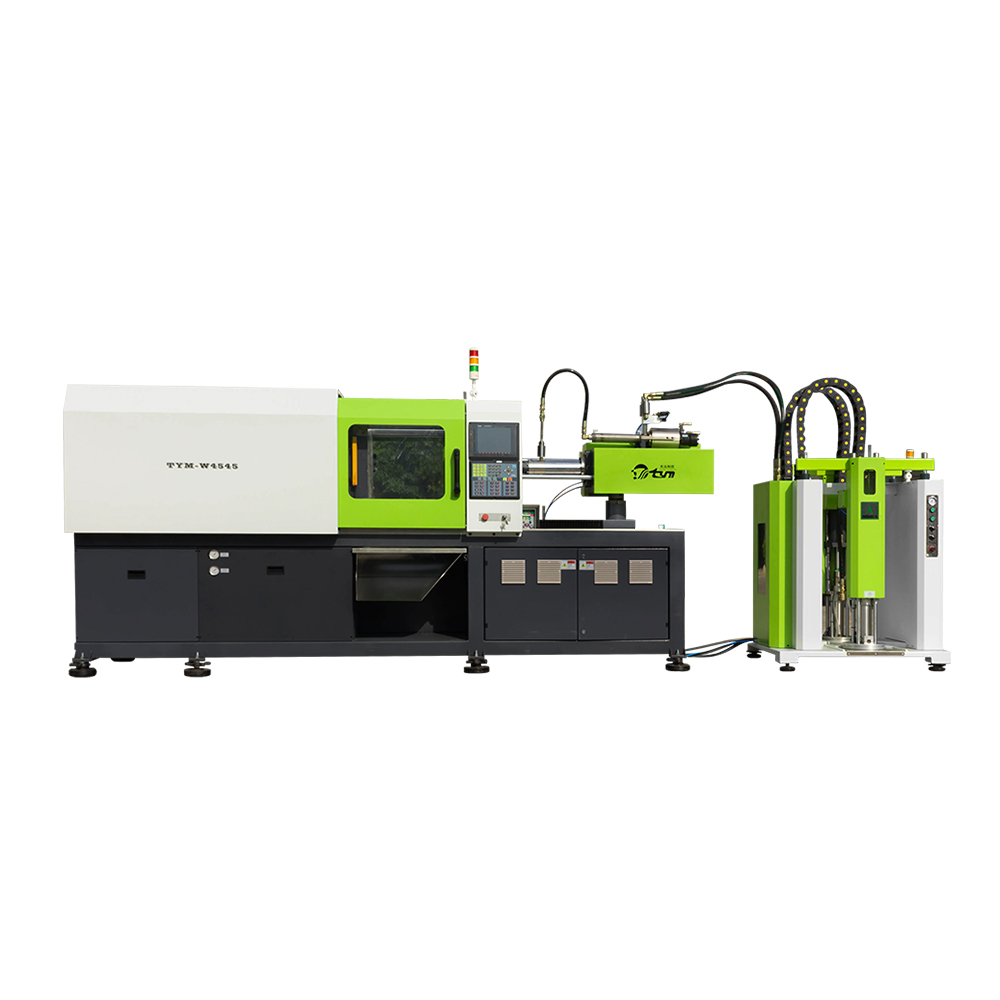

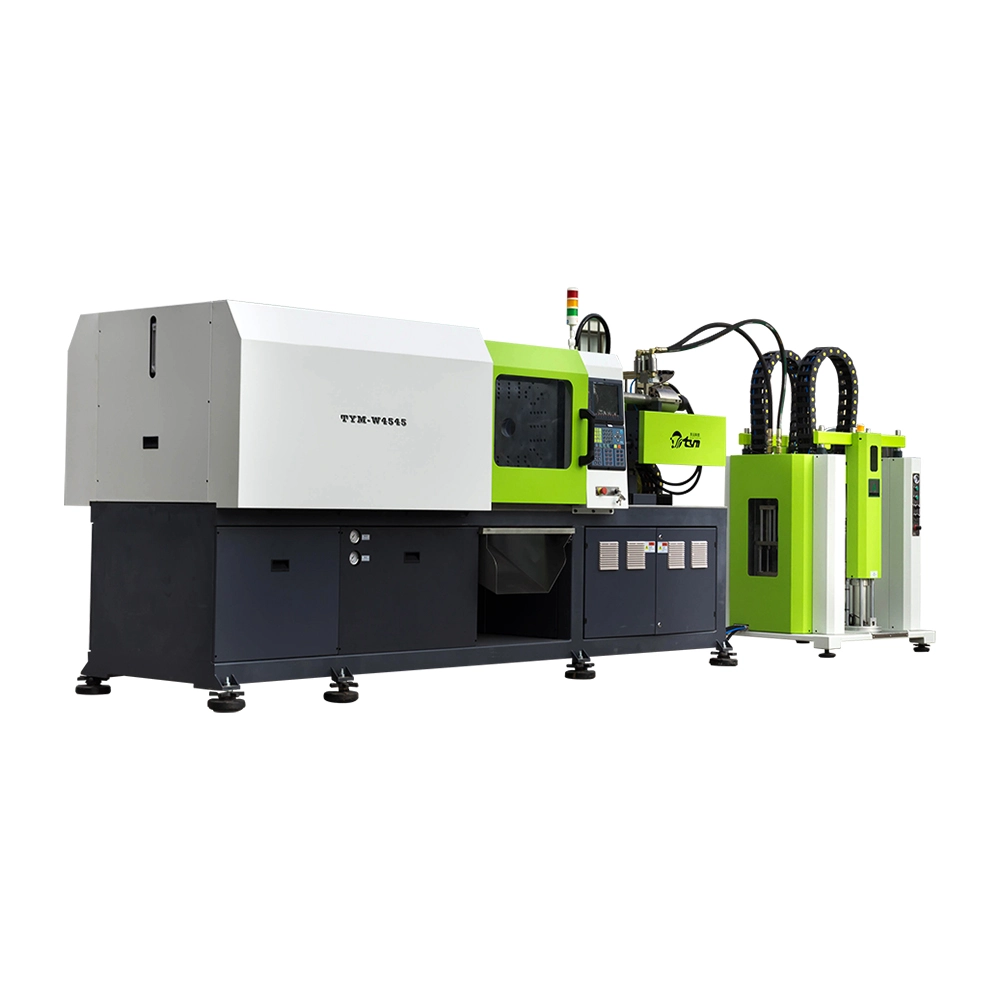

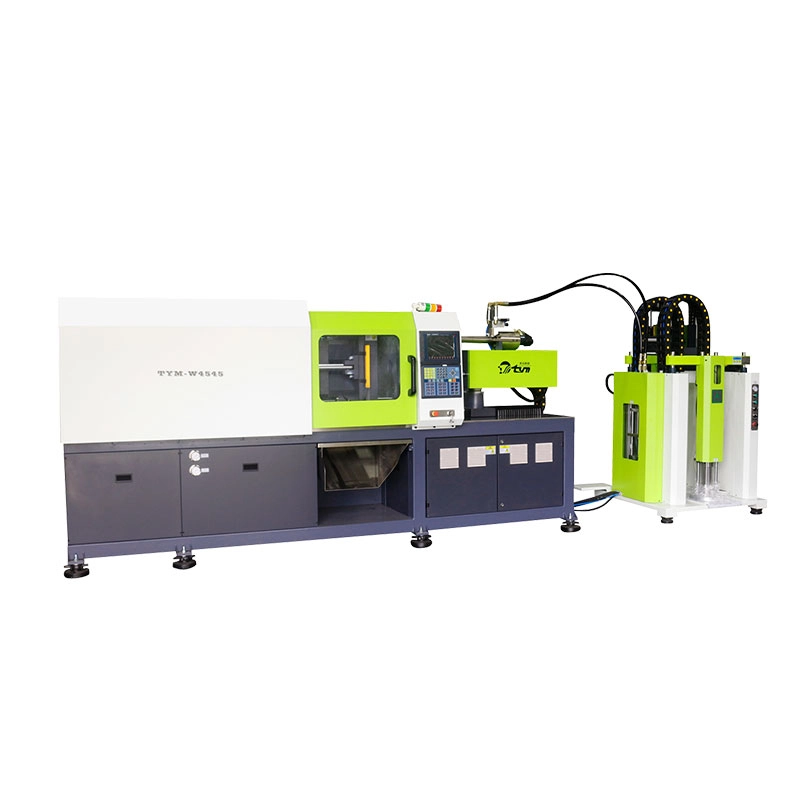

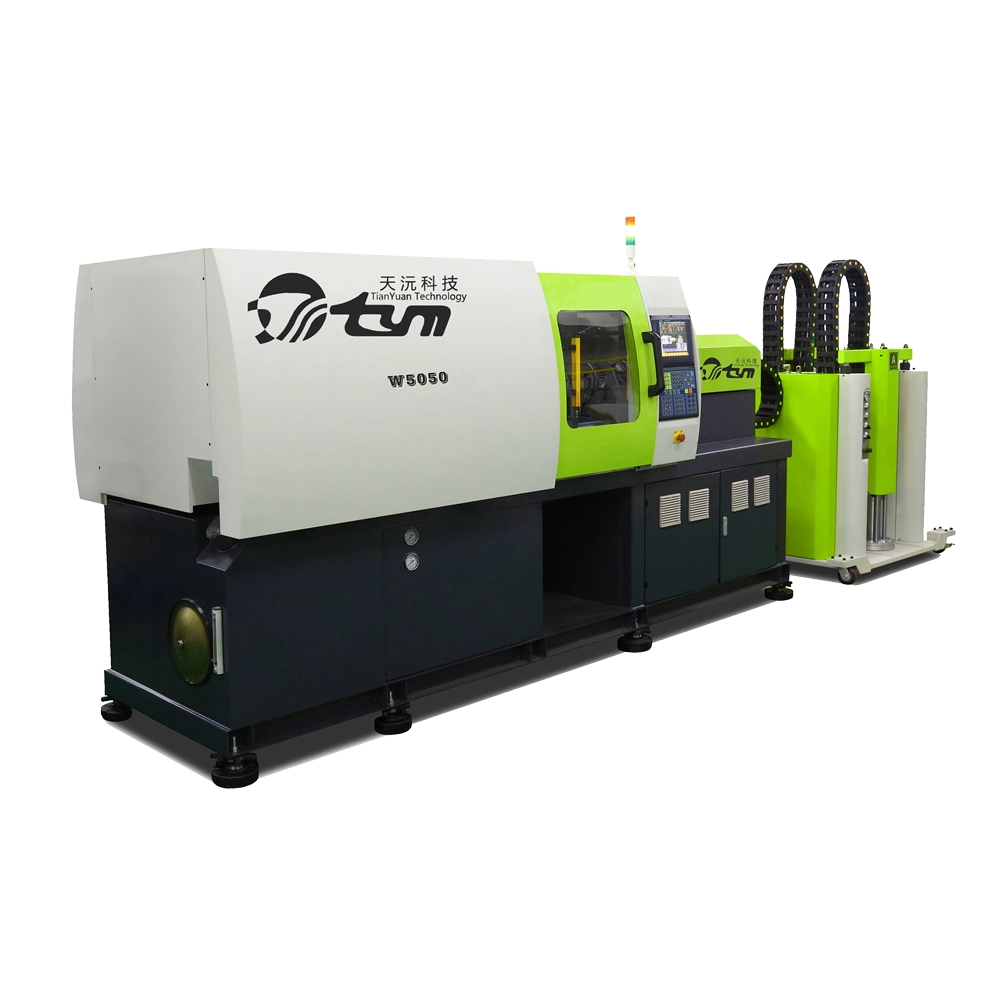

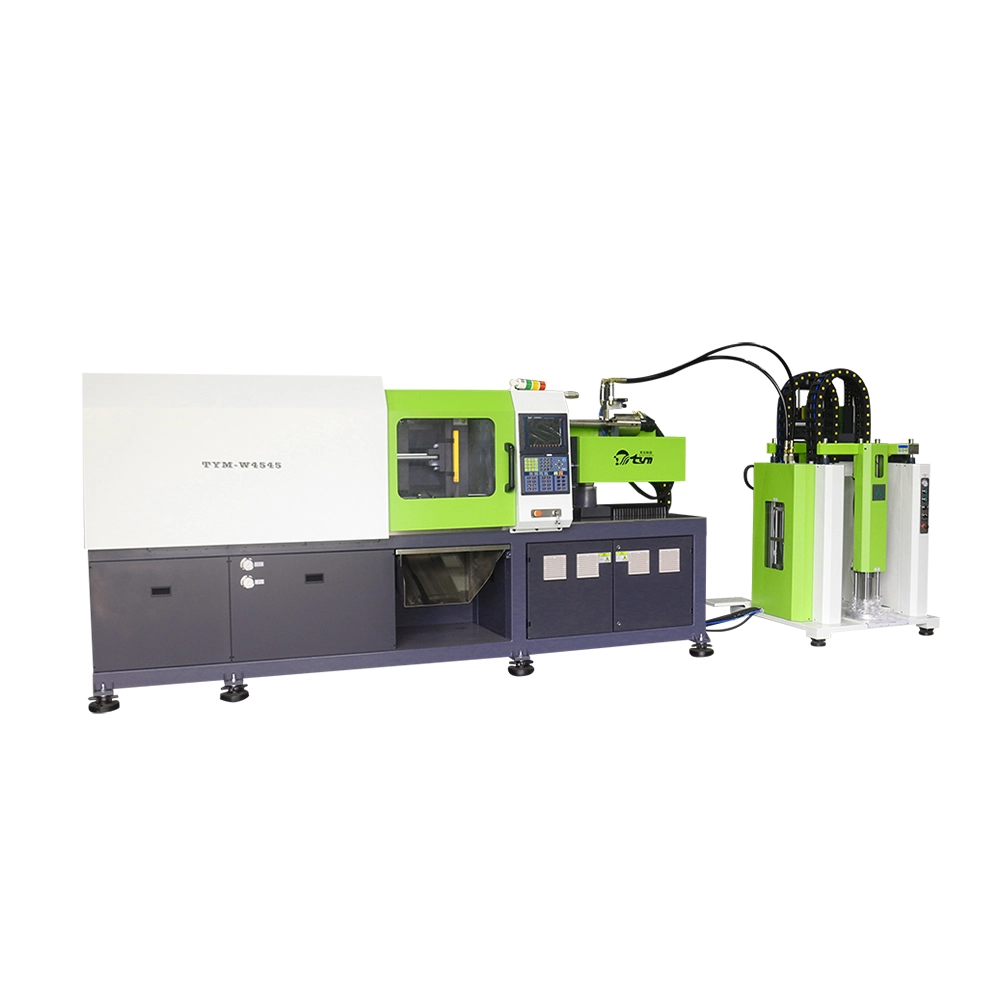

Horizontal LSR Injection Molding Machine
Direct pressure mold opening and closing [system.It](system.It)'s more suitable for producing the LSR parts which can be automatically removed from the mold.
Core Advantages of Horizontal LSR Injection Molding Machines
TYM horizontal LSR injection molding machines are designed for liquid silicone rubber part production that requires stable injection control, precise material dosing, reliable clamping, and coordinated machine operation. They can be matched with LSR dosing systems, precision silicone molds, and automation options for medical, automotive, consumer electronics, industrial, and OEM/ODM silicone molding projects.
Horizontal LSR Injection Molding Machine Specifications
Compare TYM horizontal LSR injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and mold opening range. These specifications help manufacturers evaluate suitable LSR molding equipment for liquid silicone rubber part production, silicone seals, precision components, and OEM/ODM manufacturing projects.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Machine Weight | Motor Power | Machine Dimension |
| TYM-W4040 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 95T | 200-700mm | 400*400mm | 4T | 145mm | 20Mpa | 4.5T | 12KW | 4.3*1.3*1.9m |
| TYM-W4545 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 130T | 200-700mm | 450*450mm | 4T | 145mm | 20Mpa | 5.2T | 12KW | 4.3*1.3*2.0m |
| TYM-W5050 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 130T | 200-700mm | 500*500mm | 4T | 145mm | 20Mpa | 5.8T | 12KW | 4.3*1.4*2.0m |
| TYM-W5555 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 160T | 400-900mm | 550*550mm | 4T | 145mm | 20Mpa | 7.5T | 12KW | 4.3*1.5*2.0m |
| TYM-W45110 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 130T | 400-900mm | 450*1100mm | 4T | 145mm | 20Mpa | 11.4T | 12KW | 4.3*1.5*2.0m |
| TYM-W55110 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 150T | 400-900mm | 550*1100mm | 4T | 145mm | 20Mpa | 13T | 24KW | 4.3*1.5*2.0m |

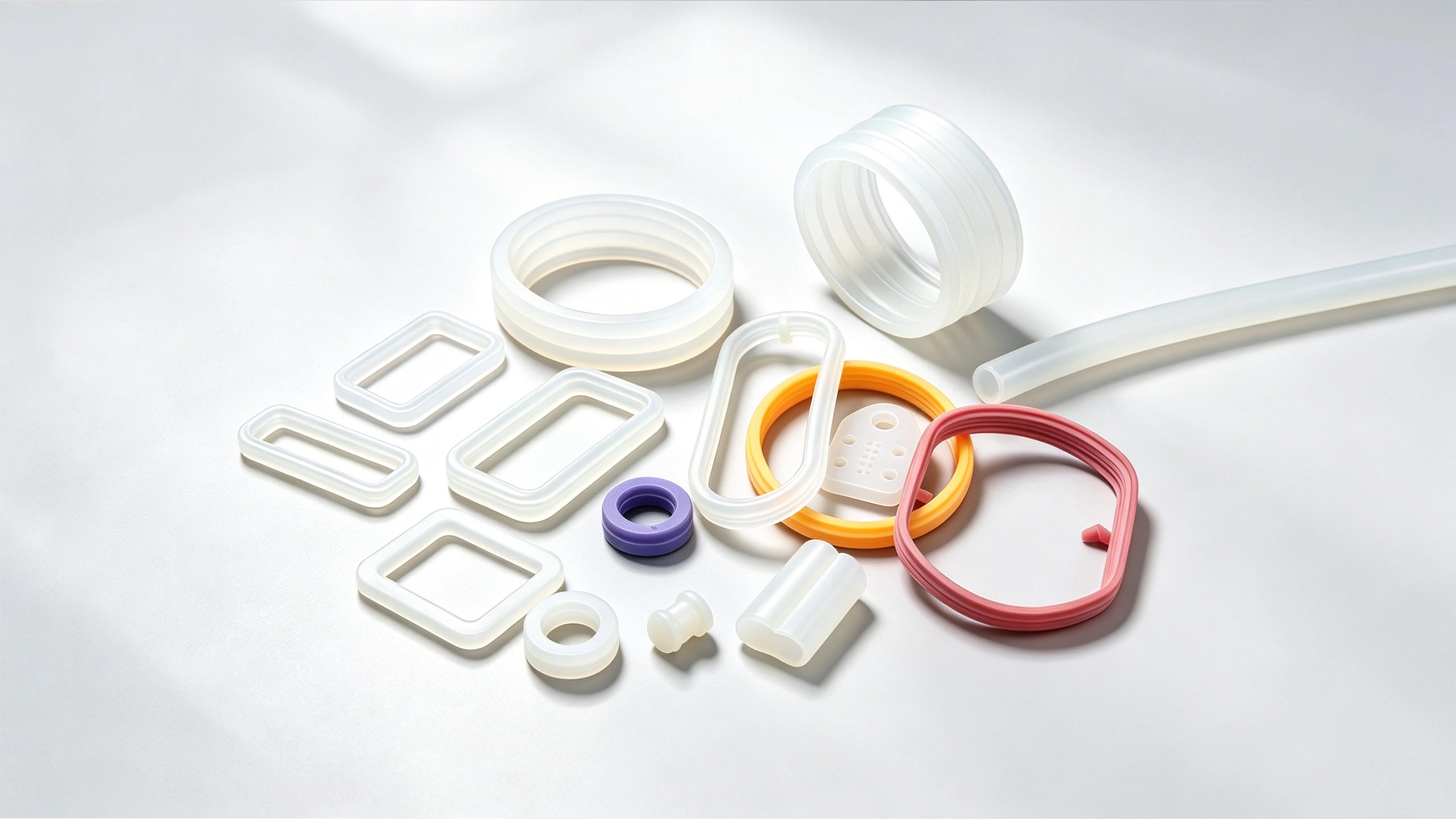

Application Fields for Horizontal LSR Injection Molding

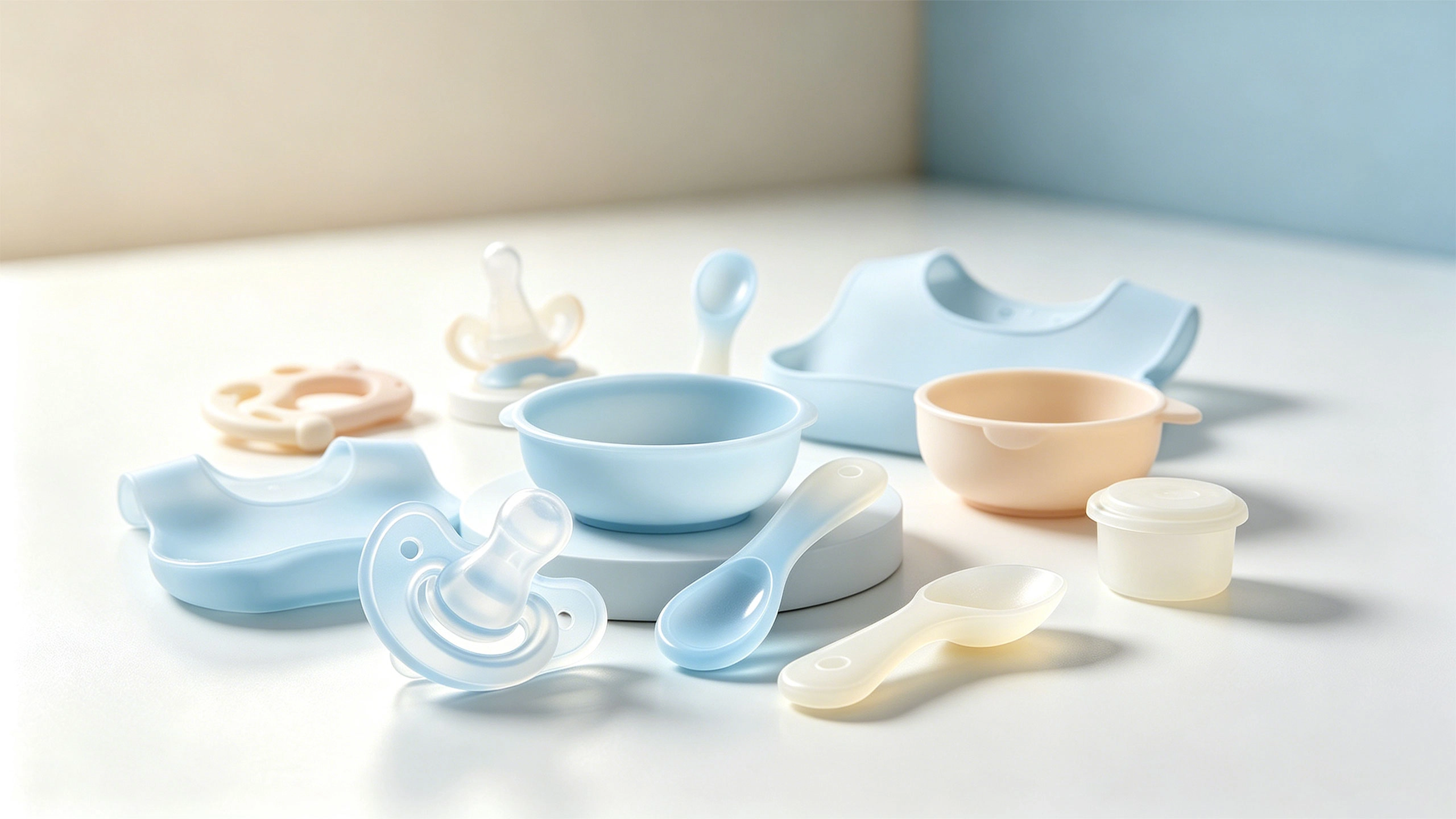

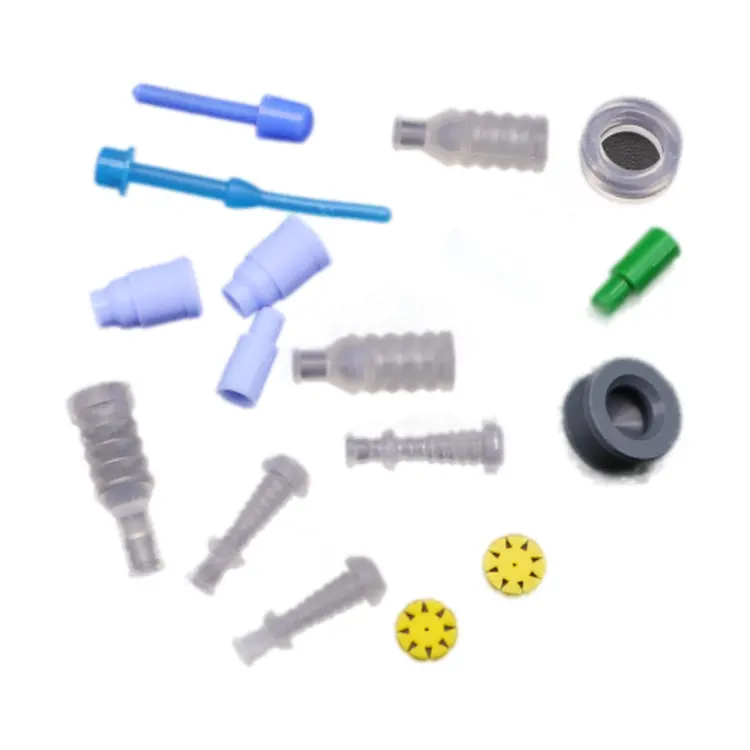

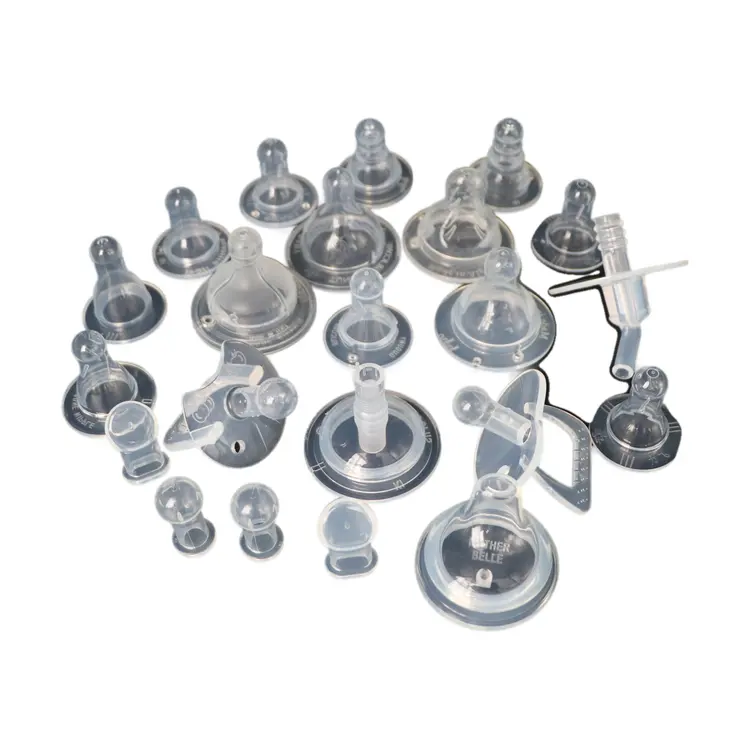

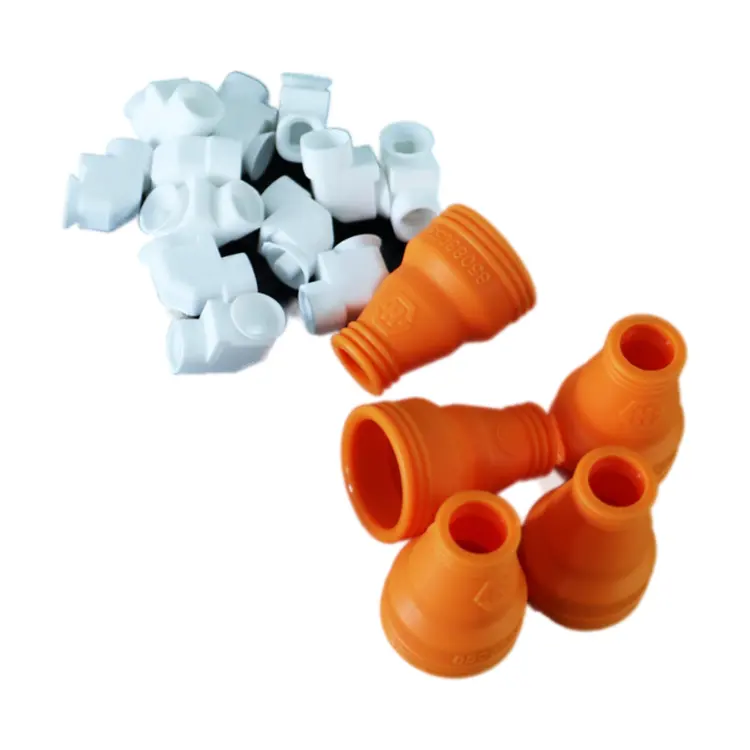

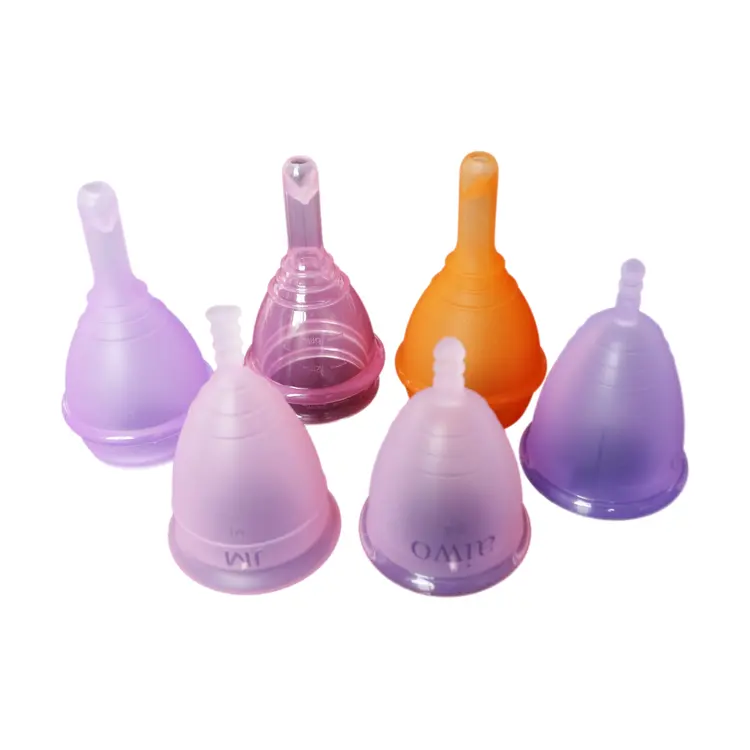

TYM horizontal LSR injection molding machines support liquid silicone rubber part production for medical, baby care, automotive, consumer electronics, industrial, and daily-use silicone applications. With LSR molding equipment, dosing systems, precision silicone molds, and automation options, TYM helps OEM/ODM manufacturers build stable silicone molding production solutions.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
Designed for Diverse LSR Manufacturing Applications
TYM supports OEM/ODM partners across medical, maternal and infant care, automotive, new energy, consumer electronics, and industrial applications with integrated LSR machines, dosing systems, precision molds, automation options, and silicone molding process support.

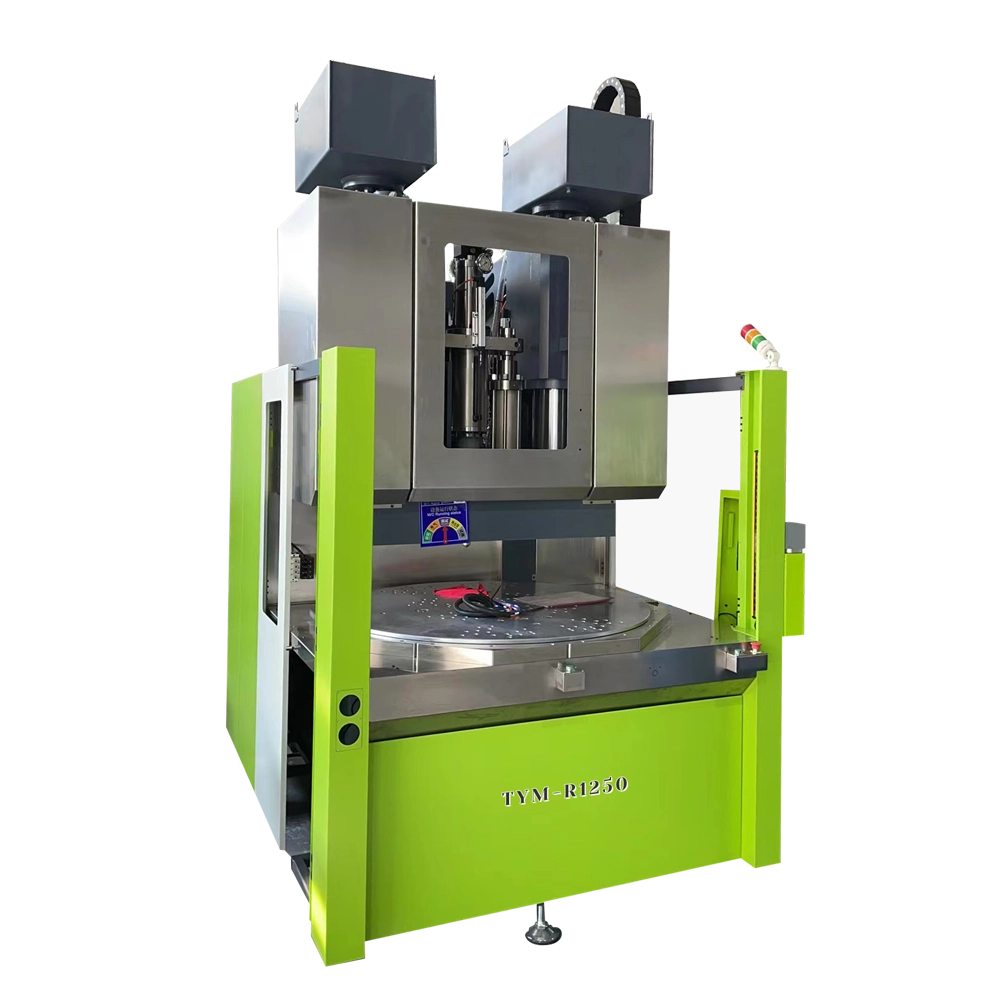

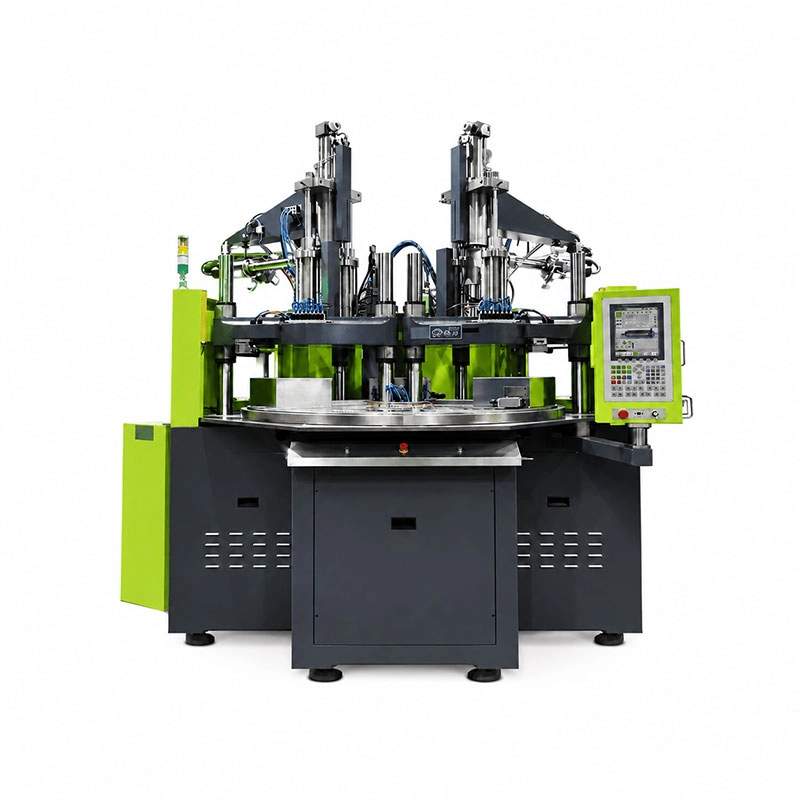

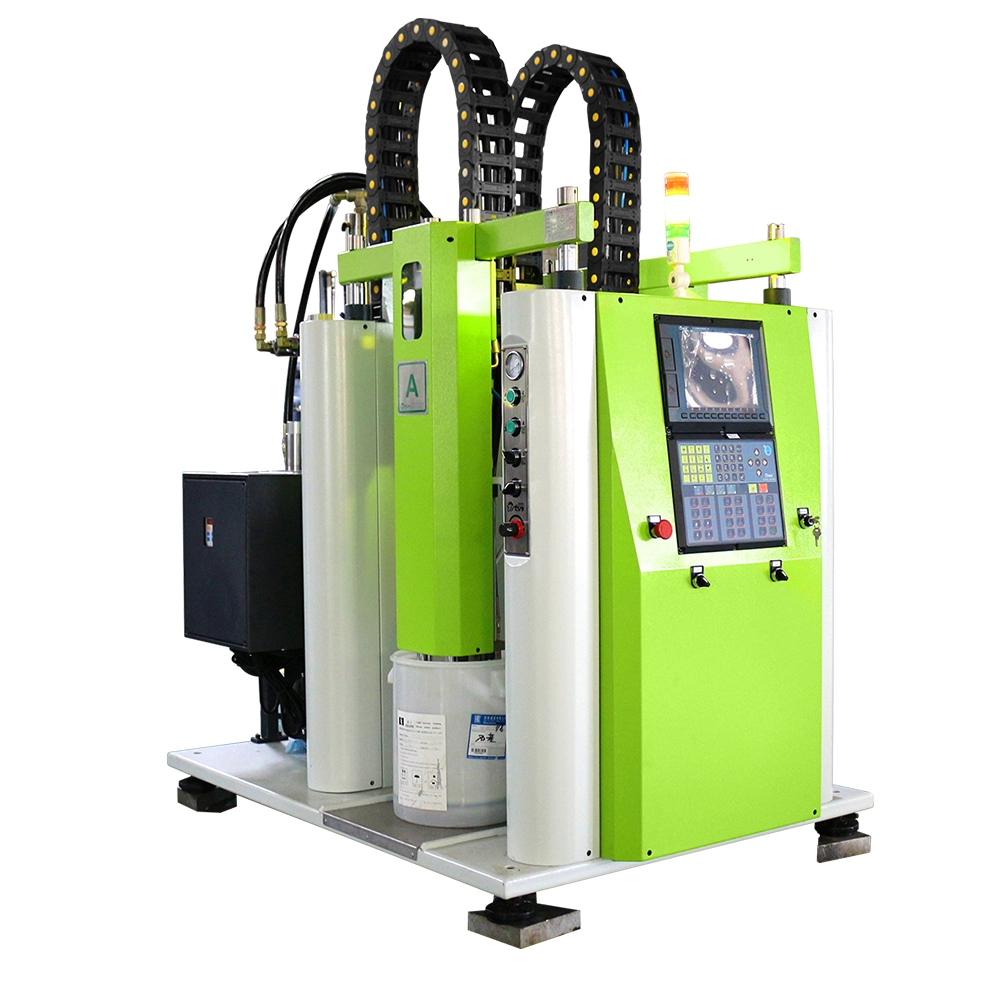

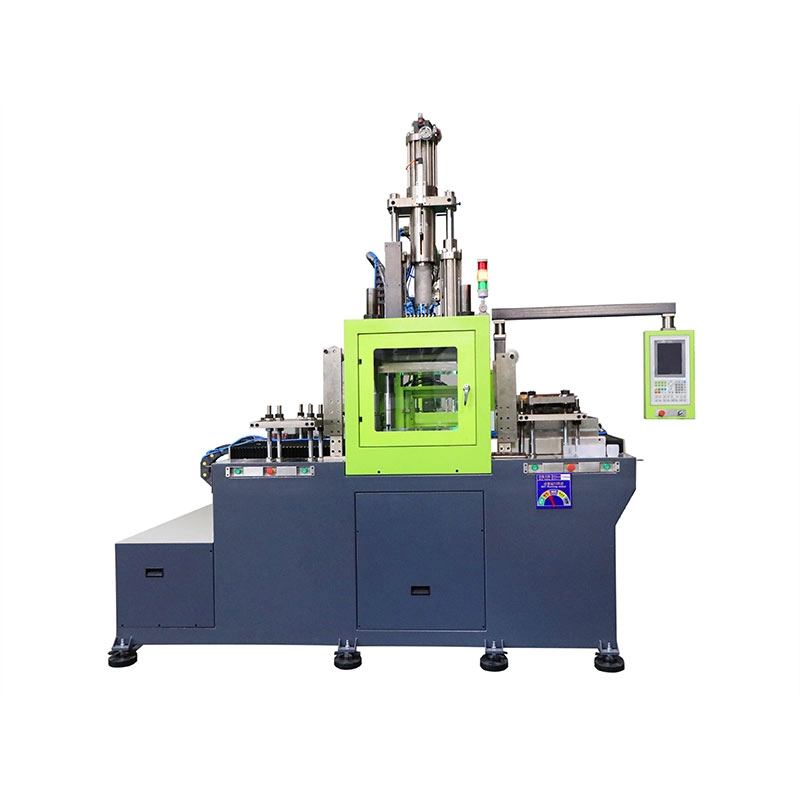

Related LSR Machines, Molds & Dosing Systems
Explore related TYM solutions for liquid silicone rubber production, including LSR injection molding machines, precision silicone molds, dosing systems, and supporting equipment for different molding applications.
Request a Quote & Technical Consultation
Interested in our Horizontal LSR Injection Molding Machines? Please share your specific molding requirements and production goals below. Our engineering team will contact you shortly with detailed pricing and a tailored solution.
Have a project in mind? Talk to our LSR experts and get a tailored turnkey solution.
