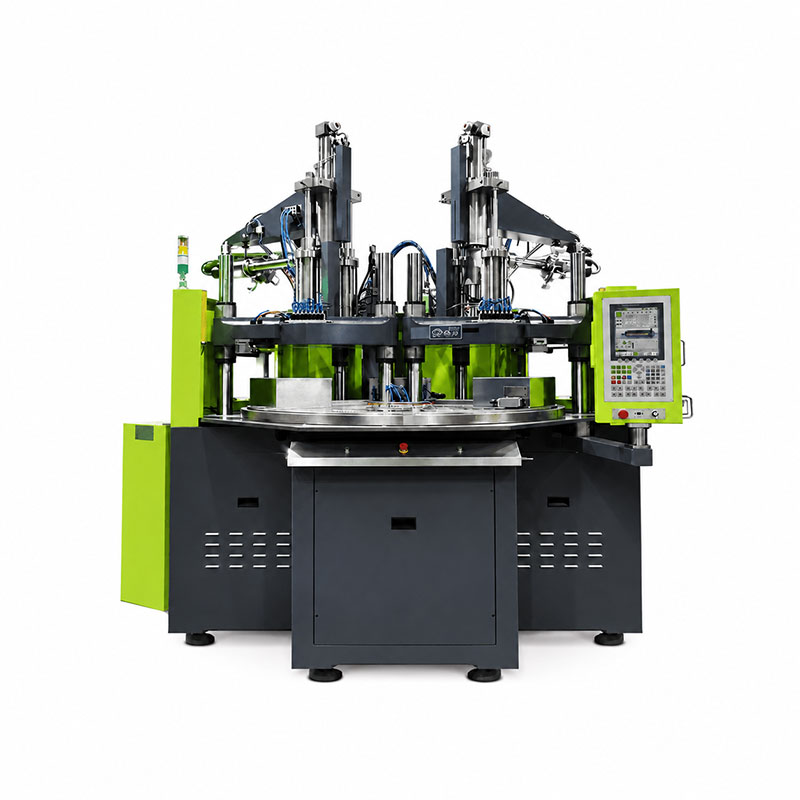

Vertical 2K / Double-color LSR Injection Molding Machine
Engineered for high-precision, multi-component molding, this Vertical 2K LSR Injection Molding Machine seamlessly combines thermoplastic and liquid silicone rubber (LSR) in a single cycle. Ideal for complex overmolding and insert molding, it maximizes production efficiency and yield for medical, automotive, and 3C electronic components.
Core Advantages of Vertical 2K Double-Color LSR Molding
Designed for two-color silicone molding and multi-material LSR production, this vertical 2K LSR injection molding machine supports independent clamping, dual injection control, and flexible mold configurations for silicone parts requiring color combinations, hardness combinations, or overmolding structures.
Vertical 2K LSR Machine Specifications
Compare the key specifications of TYM vertical 2K double-color LSR injection molding machines, including shot volume, injection rate, injection pressure, clamping force, and opening stroke. These parameters help manufacturers evaluate suitable machine configurations for two-color silicone molding, double-hardness LSR molding, and multi-material silicone part production.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
| TYM-Y31700 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 130T | 100-400mm | 550*650mmΦ1700mm | 2.5T | 60mm | 20Mpa | 2×12KW | 11T | 2.4*2.4*4.0m |
Application Fields for Vertical 2K Double-Color LSR Molding

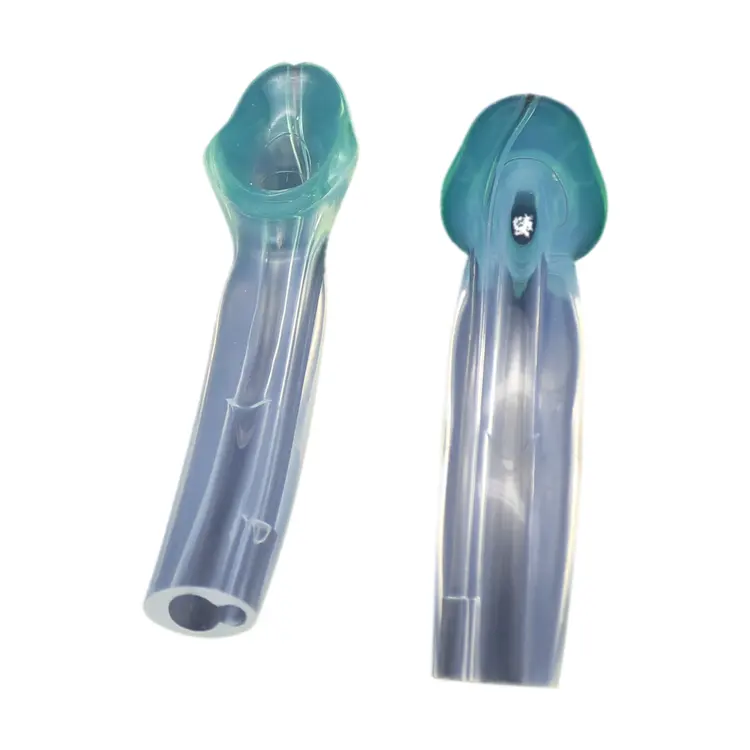

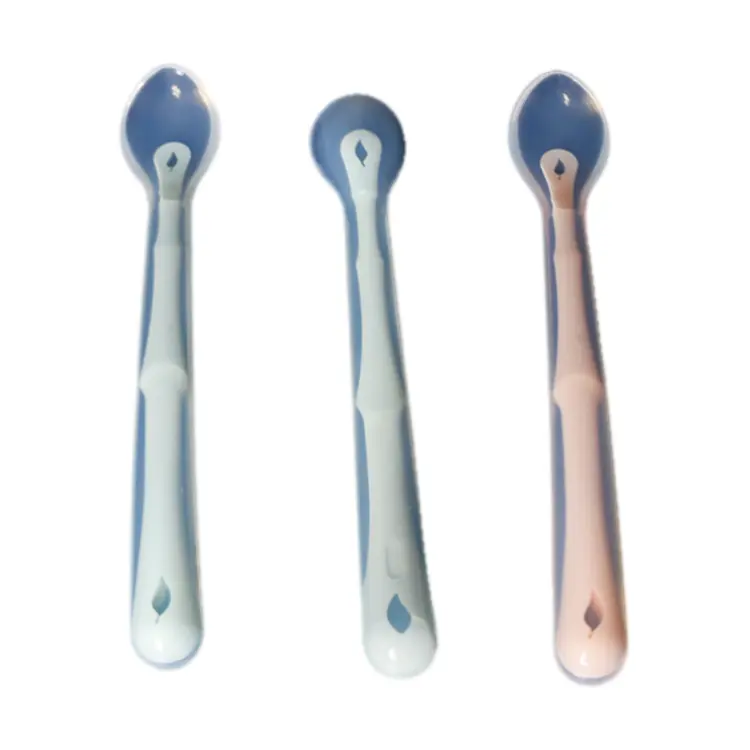

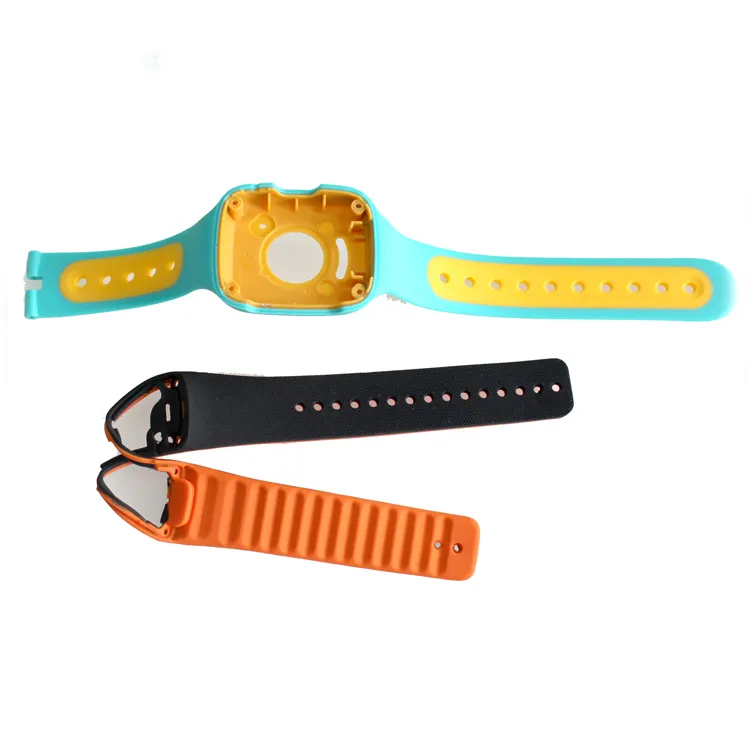

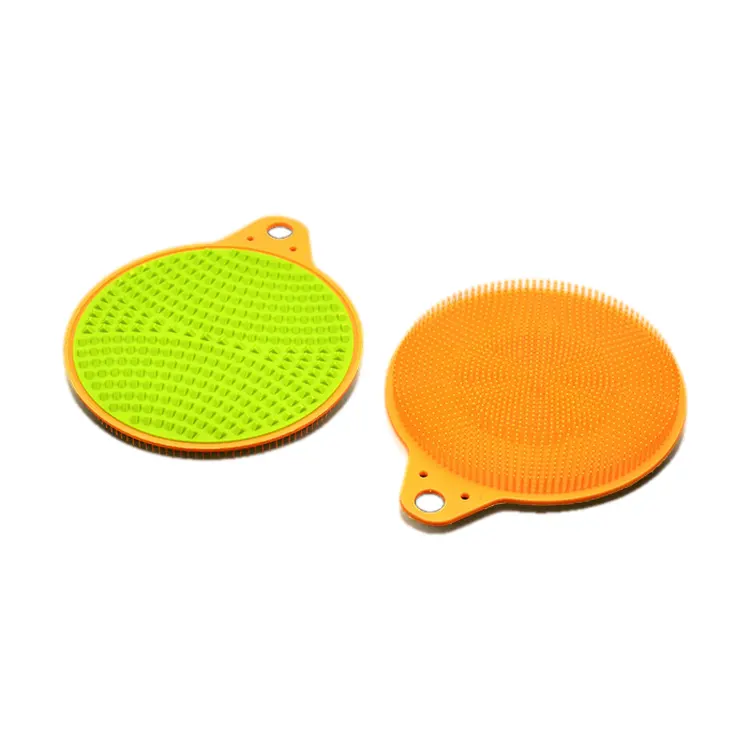

TYM vertical 2K double-color LSR injection molding machines support two-color silicone molding, double-hardness LSR molding, and multi-material silicone part production. They are suitable for silicone components that require color combinations, soft-hard integration, sealing structures, or overmolded designs across medical, baby care, automotive, new energy, consumer electronics, and wearable device applications.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
