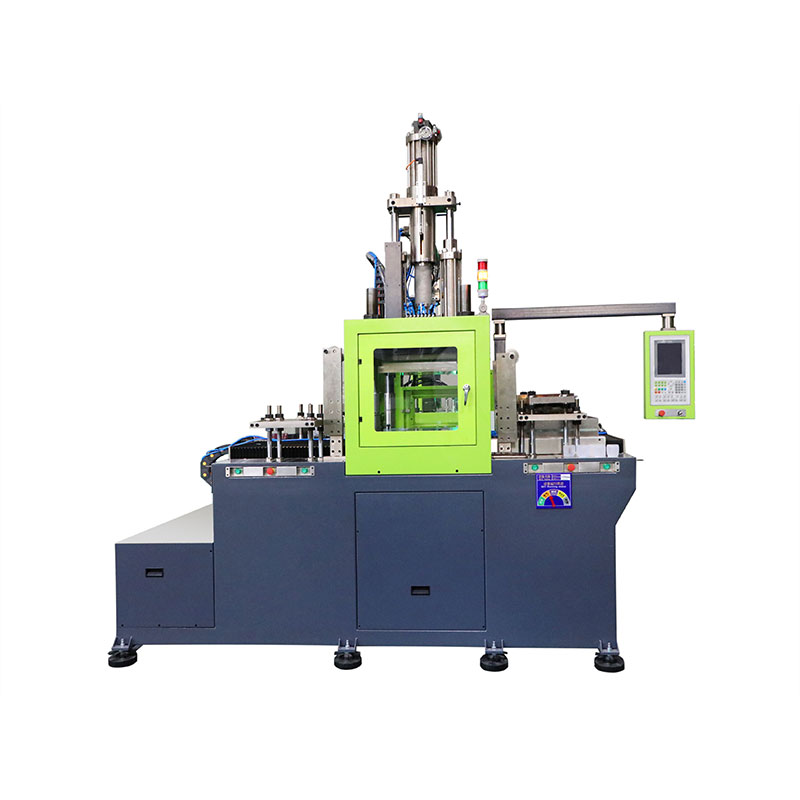

Vertical 3RT LSR Injection Molding Machine
Customizable multiple ejection functions.
The machine enabling replace the solid silicone mold with LSR molding.
The machine is equipped with a fixed heated mold base, which Reduces mold development and tooling costs.
It allows two molds producing different products to run simultaneously using the same material.
Suitable for solid compression molding processes, including two-plate molds and multi-layer molds.
Key Features of Vertical 3RT LSR Injection Molding Machine
TYM vertical 3RT LSR injection molding machines are designed for application-specific liquid silicone rubber molding projects that require flexible mold layouts, customized ejection mechanisms, and stable silicone molding control. This LSR molding equipment can support small and precision silicone parts, multi-part molding concepts, and projects evaluating a transition from compression molding to liquid silicone injection molding.
Vertical 3RT LSR Injection Molding Machine Specifications
Compare TYM vertical 3RT LSR injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and opening stroke. These specifications help manufacturers evaluate suitable LSR molding equipment for application-specific liquid silicone rubber molding projects, precision silicone parts, and production layouts requiring flexible mold configurations.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Machine Weight | Motor Power | Machine Dimension |
| TYM-L6068-3RT | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 150T | 400-700mm | 600*680mm | 4T | 150mm/300mm | 20Mpa | 4.7T | 12KW | 2.7*1.8*3.6m |
| TYM-L7078-3RT | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 150T | 600-900mm | 700*780mm | 4T | 150mm/300mm | 20Mpa | 5.3T | 12KW | 3.2*1.9*3.8m |
Application Fields for Vertical 3RT LSR Injection Molding
TYM vertical 3RT LSR injection molding machines support application-specific liquid silicone rubber molding projects for medical, baby care, automotive, consumer electronics, and industrial silicone components. With flexible mold configurations, customized ejection mechanisms, and stable silicone molding control, this LSR molding equipment helps manufacturers evaluate suitable production solutions for small, precision, and multi-structure silicone parts.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
