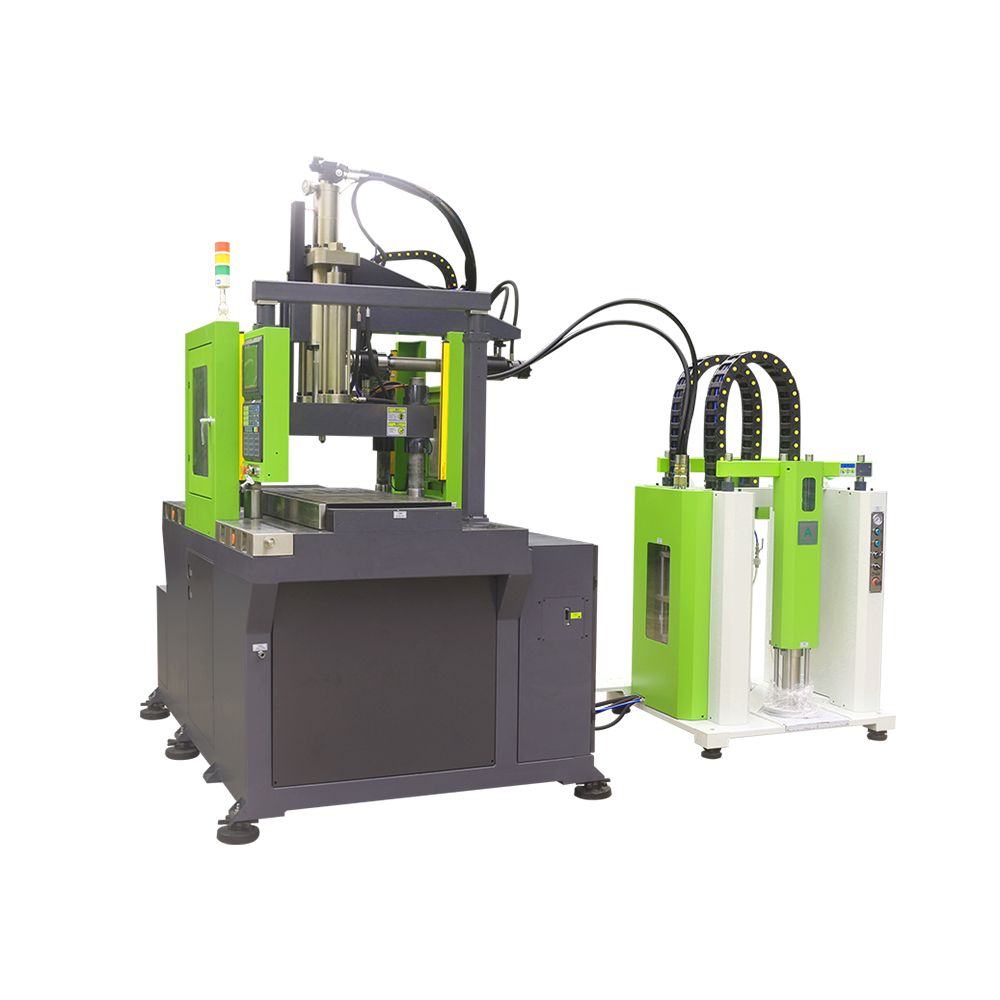

Vertical LSR Injection Molding Machine

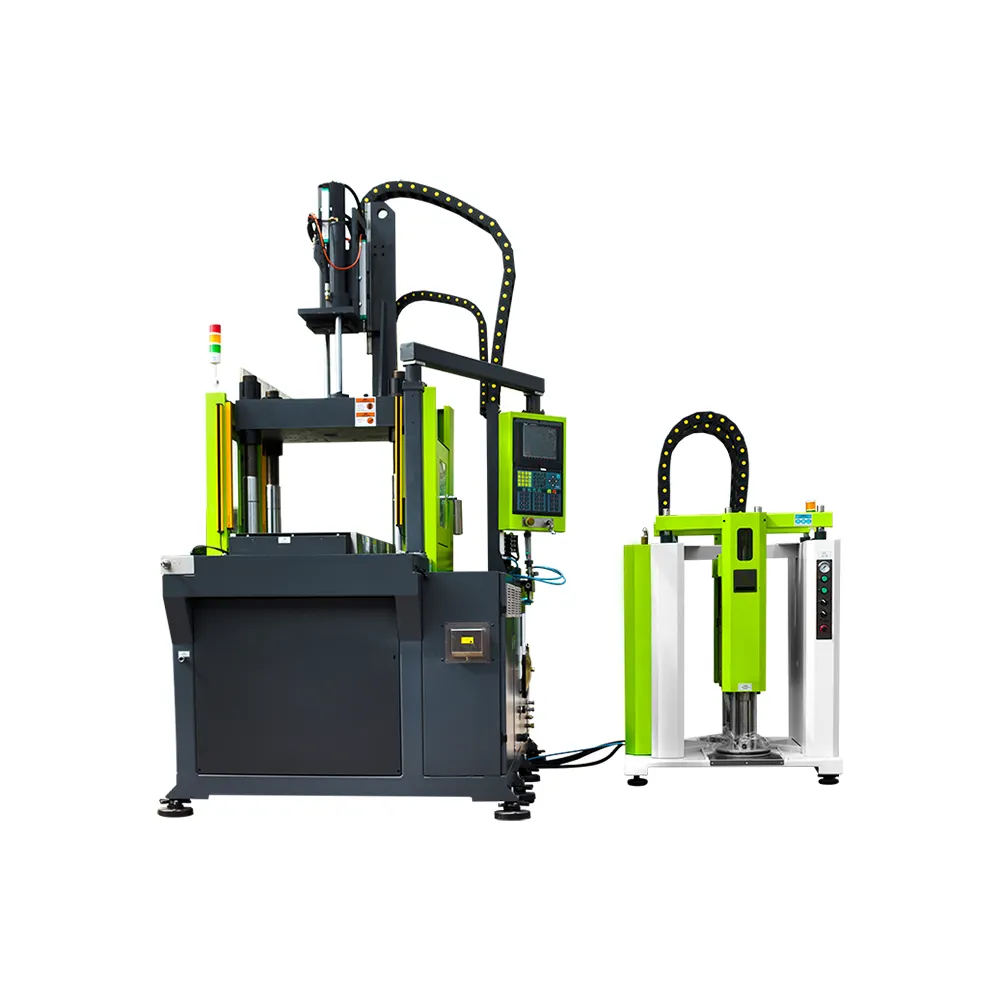

Vertical LSR Machine For Overmolding Products
The vertical machine will open and close the mold in the vertical direction. The double slide plate can be installed with one upper mold and two lower molds. It can cooperate with the double station operation to improve the production efficiency, and is more suitable for the production of rubber coated products of silica gel package inserts.
Core Advantages of Vertical LSR Injection Molding

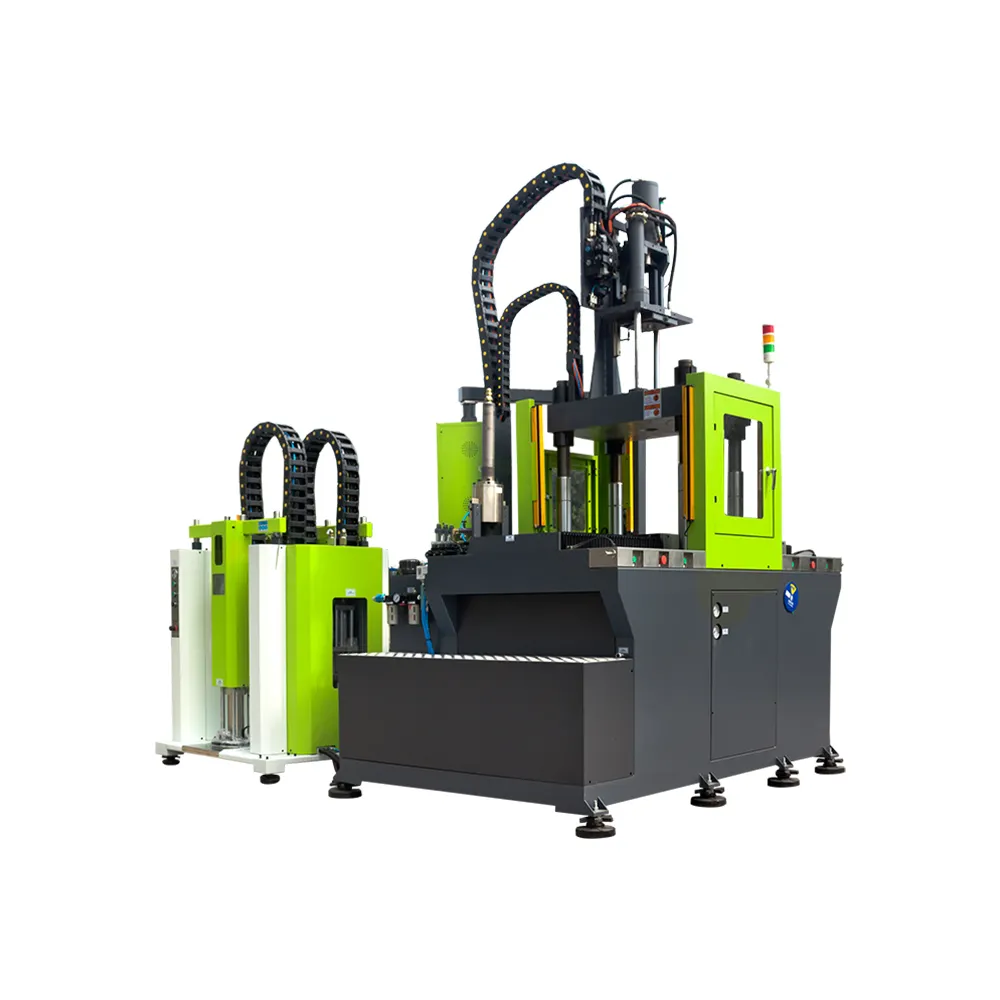

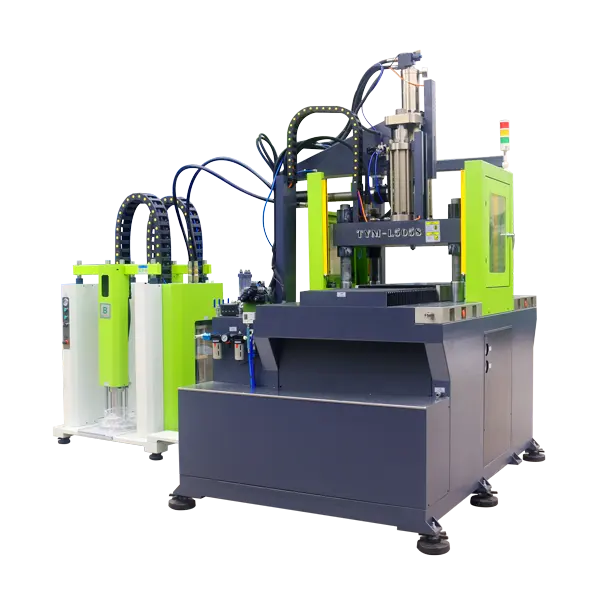

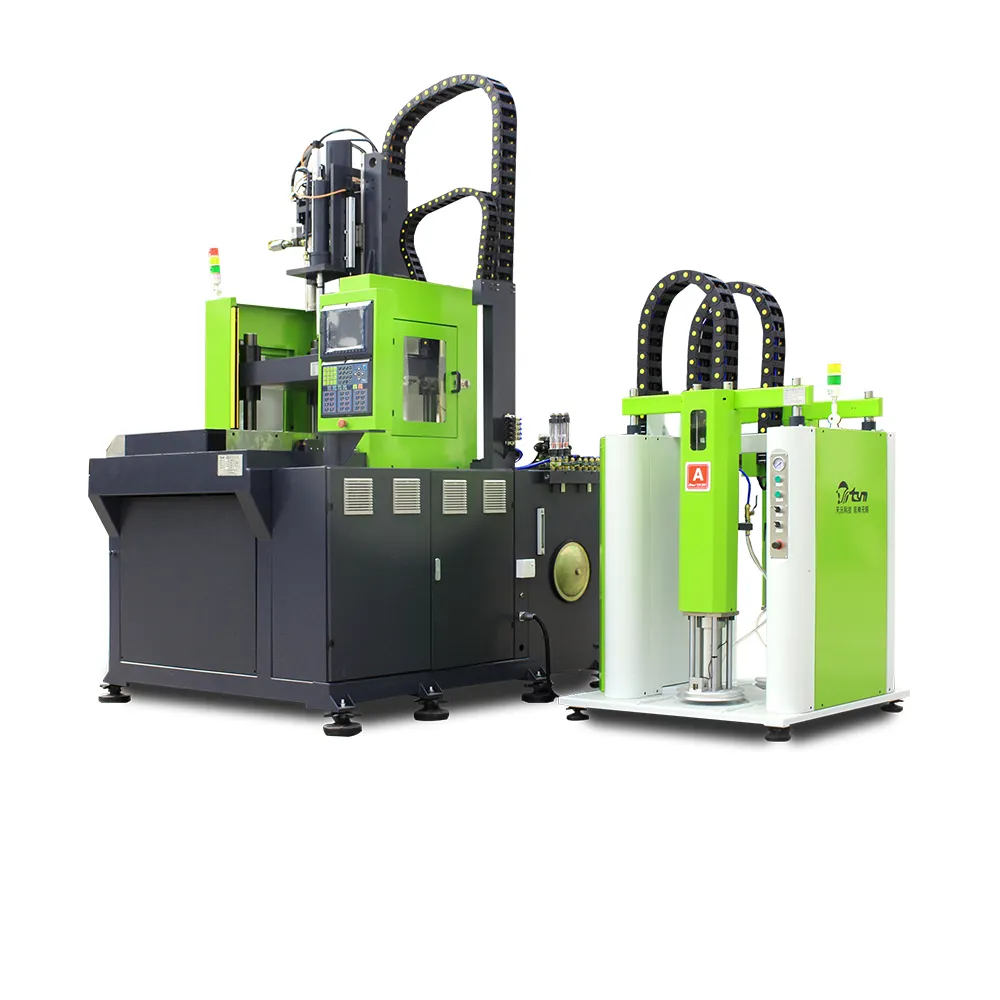

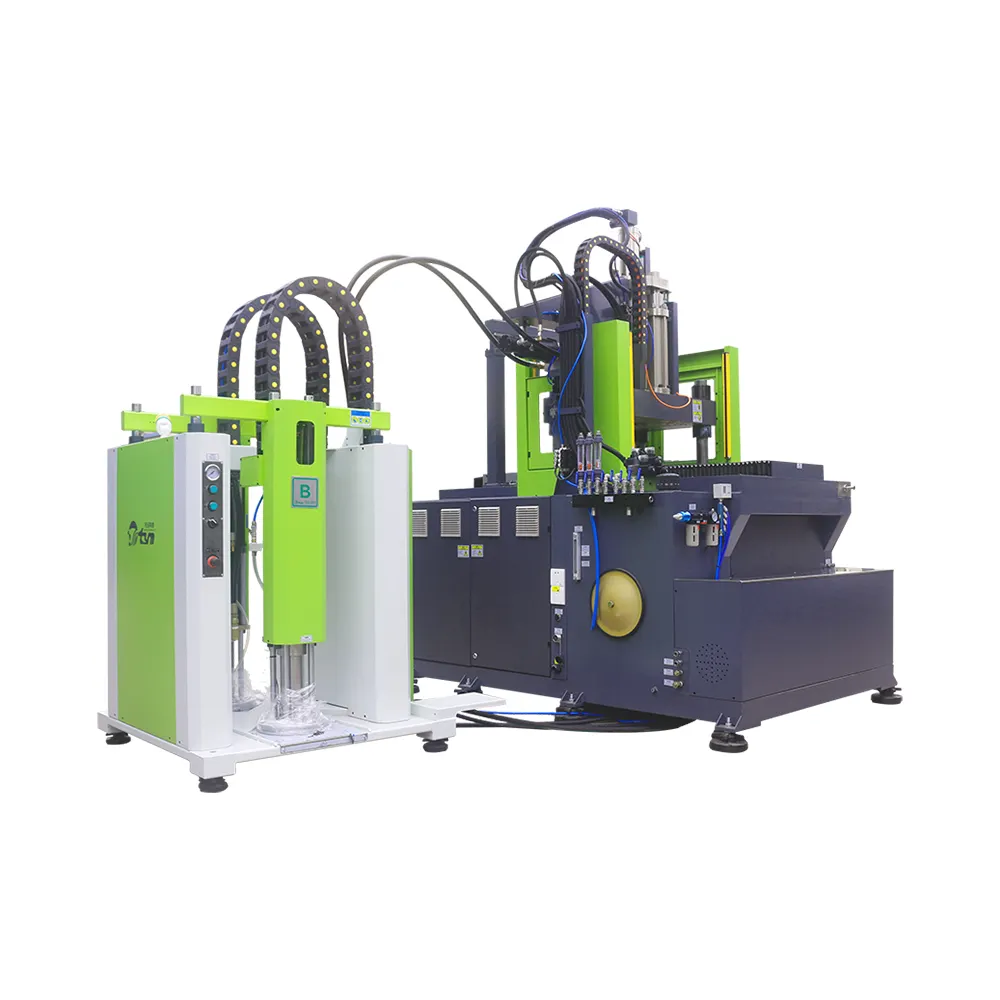

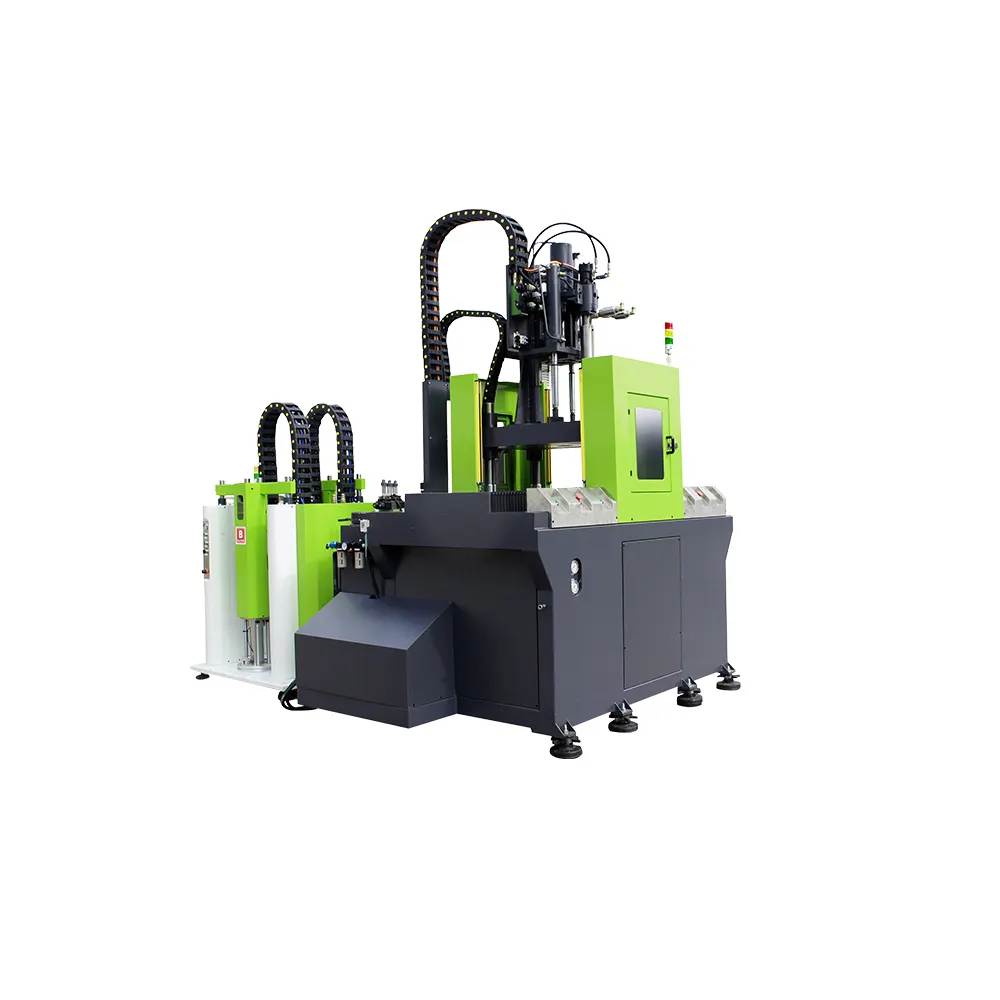

Designed for rotary table liquid silicone rubber production, this vertical LSR injection molding machine supports stable mold clamping, dual-workstation operation, material dosing and mixing, and integrated machine control. It is suitable for LSR overmolding, insert molding, and precision silicone part production that requires compact layout and repeatable molding performance.
Product Specifications for Vertical LSR Machine
Compare TYM vertical liquid silicone injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and adjustable opening range. These specifications help manufacturers evaluate suitable machine configurations for LSR overmolding, insert molding, and precision silicone part production.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYM-L4048 | 10, 35, 70, 160, 285g (Custom Made) | 150g/s | 700kg/cm² | 95T | 250-550mm Adjustable (Customized) | 400×480mm | 4T | 150mm | 20MPa | 12KW | 4.7T | 2.2×1.6×3.5m |
| TYM-L5058 | 10, 35, 70, 160, 285g (Custom Made) | 150g/s | 700kg/cm² | 130T | 400-700mm Adjustable (Customized) | 500×580mm | 4T | 150mm | 20MPa | 12KW | 5.3T | 2.4×1.7×3.5m |
| TYM-L6068 | 10, 35, 70, 160, 285g (Custom Made) | 150g/s | 700kg/cm² | 150T | 400-700mm Adjustable (Customized) | 600×680mm | 4T | 150mm | 20MPa | 12KW | 5.6T | 2.7×1.8×3.6m |
| TYM-L7078 | 10, 35, 70, 160, 285g (Custom Made) | 150g/s | 700kg/cm² | 150T | 600-900mm Adjustable (Customized) | 700×780mm | 4T | 150mm | 20MPa | 12KW | 7.5T | 3.2×1.9×3.8m |
| TYM-L8088 | 10, 35, 70, 160, 285g (Custom Made) | 150g/s | 900kg/cm² | 250T | 600-950mm Adjustable (Customized) | 800×880mm | 4T | 150mm | 20MPa | 26.7KW | 12T | 3.5×2.1×4.4m |
Application Fields for Vertical LSR Molding

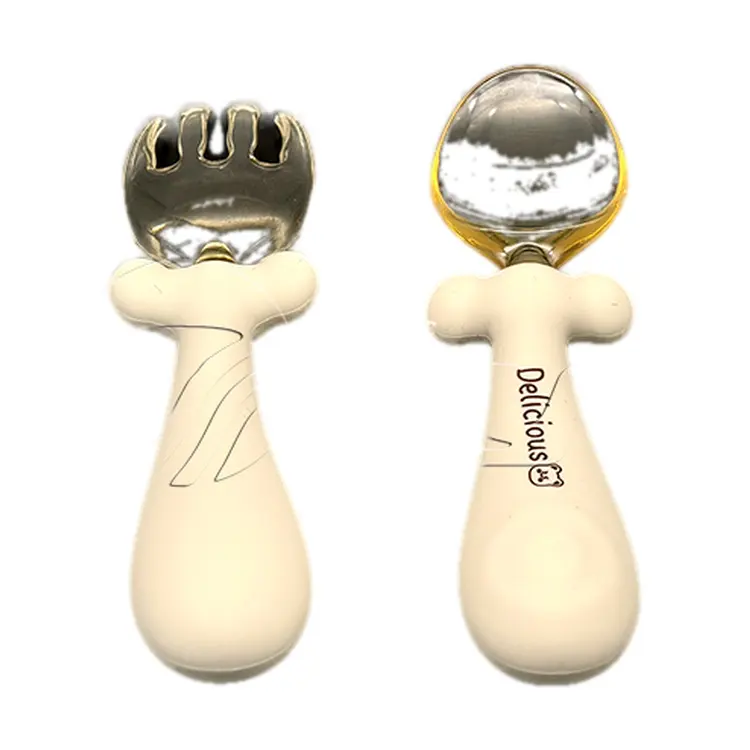

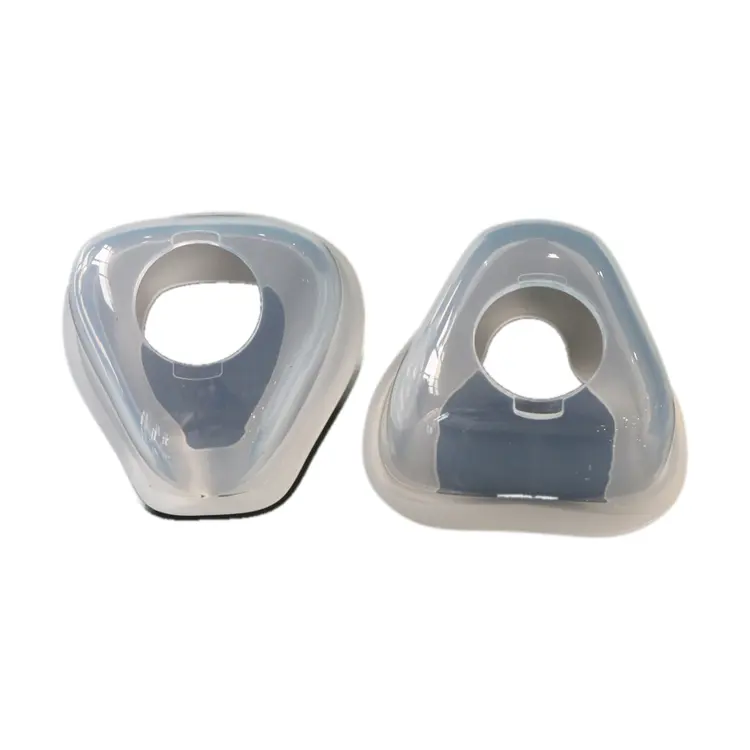

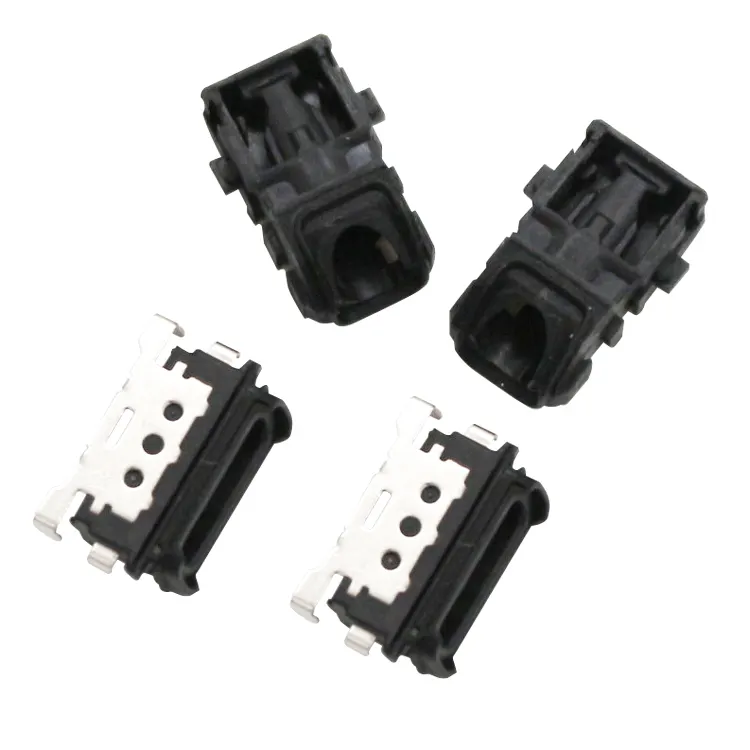

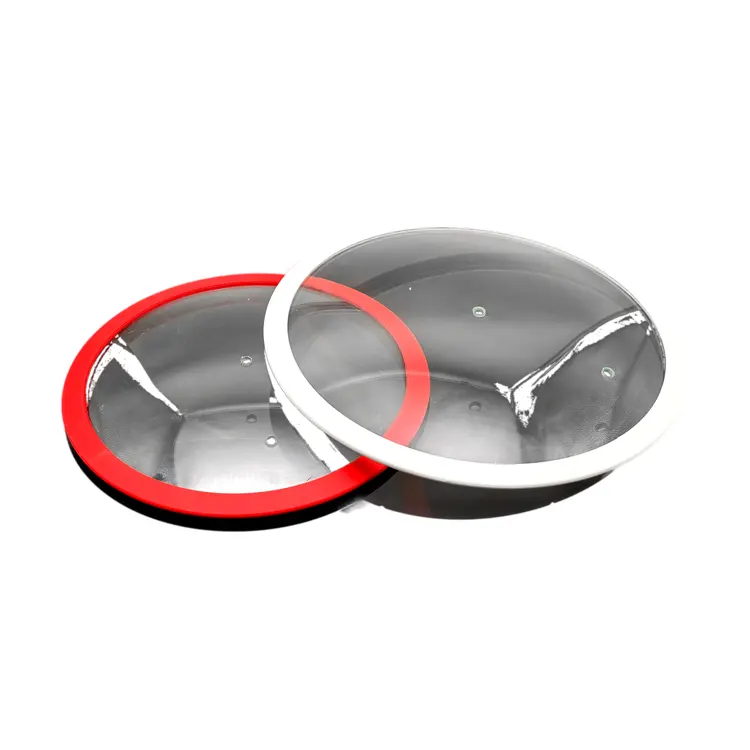

TYM vertical liquid silicone injection molding machines support LSR overmolding, insert molding, and precision silicone part production for medical, mother and baby, automotive, consumer electronics, and daily-use silicone applications. Final machine and mold configuration can be matched according to product structure, material requirements, output target, and automation needs.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
