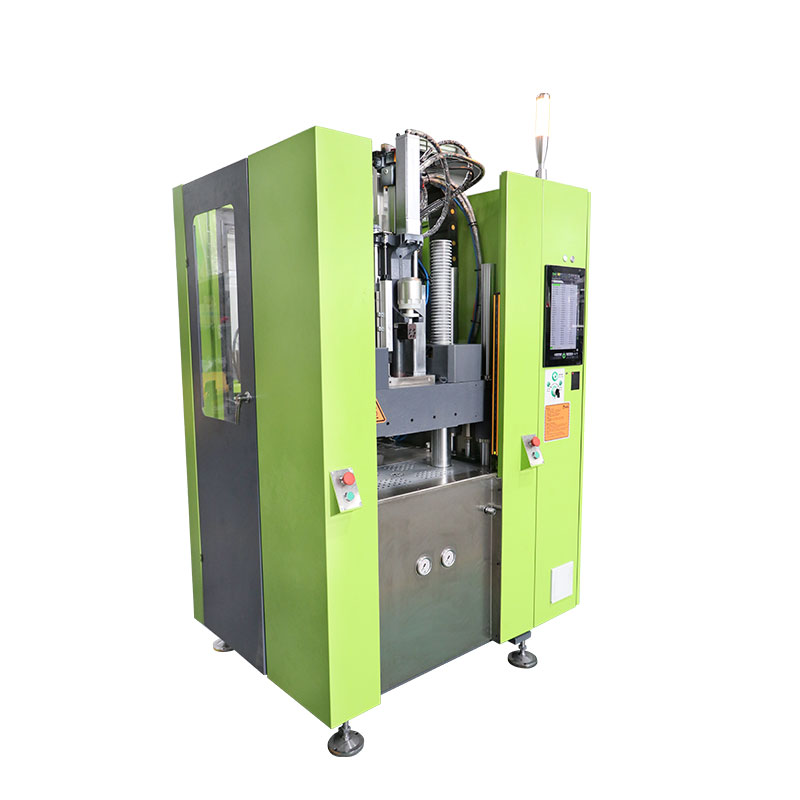

Vertical Micro LSR Injection Molding Machine
The design of the piston structure barrel was adopted to achieve the structural design of the tiny barrel. The precision injector barrel was 4.8G and the theoretical output accuracy was 0.0032 G. Using the bipolar barrel structure design, the injection control is more stable and more accurate. Accurate barrel is a necessary weapon for producing precision products and fine products.
Core Advantages of Vertical Micro LSR Injection Molding
TYM vertical micro LSR injection molding machine is designed for micro silicone molding projects that require small shot volume, stable material feeding, quick material changeover, and precise molding control. It is suitable for small silicone components, prototype validation, material testing, and precision LSR part development.
Vertical Micro LSR Machine Specifications
Compare the key specifications of TYM vertical micro LSR injection molding machines, including shot volume, injection rate, injection pressure, clamping force, and opening stroke. These parameters help manufacturers evaluate suitable micro silicone molding equipment for small silicone components, sample testing, material validation, and precision LSR part development.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
| TYM-R620 | 4.8,10g (custom made) | 30g/s | 700kg/cm² | 40T | 100-400mm | 240*280mm Φ 620mm | 2.5T | 60mm | 20Mpa | 12KW | 4.2T | 1.5*1.7*2.5m |
Application Fields for Vertical Micro LSR Molding
TYM vertical micro LSR injection molding machines support micro silicone molding projects for small silicone components, sample testing, material validation, and precision LSR part development. They can be used for medical, baby care, automotive, consumer electronics, and daily-use silicone applications that require small shot volume, flexible material changeover, and stable molding control.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
