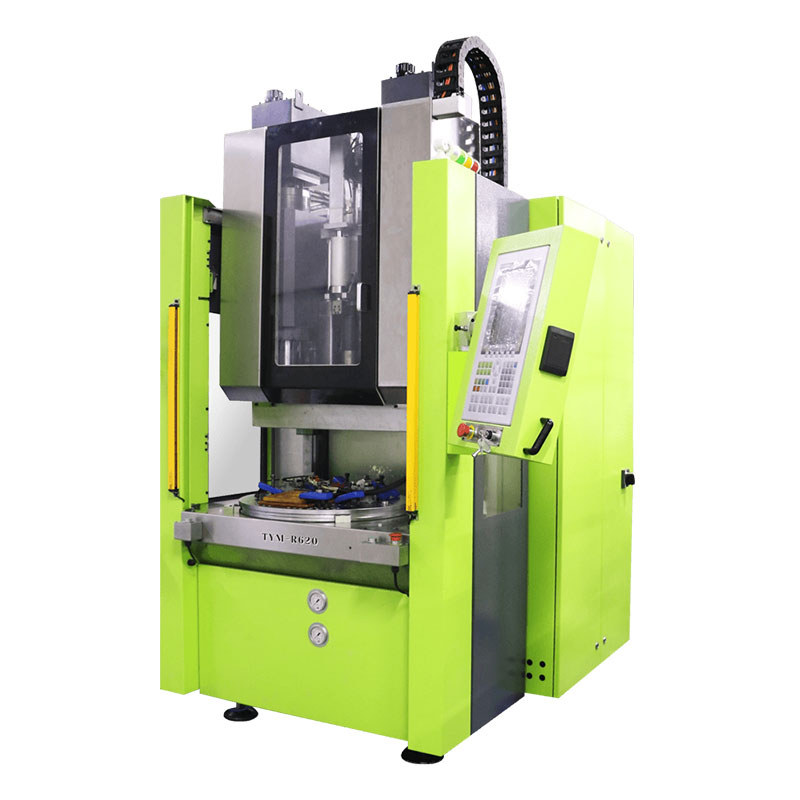

Vertical Rotary Micro LSR Injection Molding Machine
The design of the piston structure barrel was adopted to achieve the structural design of the tiny barrel. The precision injector barrel was 4.8G and the theoretical output accuracy was 0.0032 G. Using the bipolar barrel structure design, the injection control is more stable and more accurate. Accurate barrel is a necessary weapon for producing precision products and fine products.
Core Advantages of Vertical Rotary Micro LSR Molding
TYM vertical rotary micro LSR injection molding machines are designed for micro LSR molding projects that require small shot volume, rotary production layout, stable material feeding, and precise process control. They are suitable for small liquid silicone rubber parts, sample testing, material validation, precision silicone components, and application-specific micro molding projects.
Vertical Rotary Micro LSR Machine Specifications
Compare TYM vertical rotary micro LSR injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and opening stroke. These specifications help manufacturers evaluate suitable micro LSR molding equipment for small liquid silicone rubber parts, sample testing, material validation, precision silicone components, and rotary production layouts.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
| TYM-V3035 | 4.8,10g (custom made) | 30g/s | 700kg/cm² | 50T | 135-535mm | 300*350mm | 1.5T | 100mm | 20Mpa | 12KW | 2T | 1.5*1.2*2.3m |

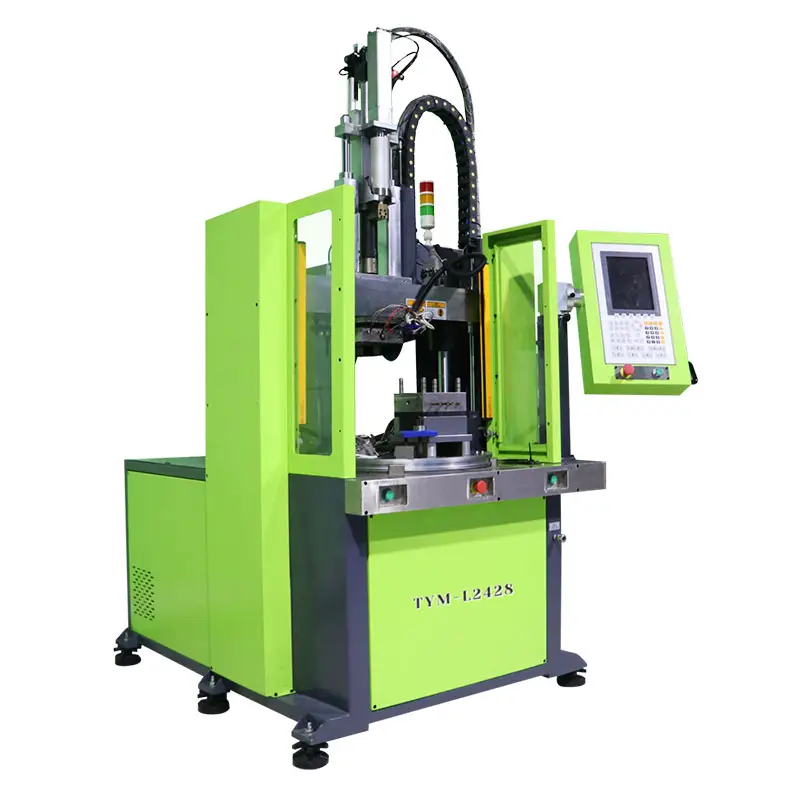

| TYM-L2428 | 4.8,10g (custom made) | 30g/s | 700kg/cm² | 40T | 100-400mm | 240*280mm Φ 620mm | 2.5T | 60mm | 20Mpa | 12KW | 2.5T | 1.38*1.58*2.8m |

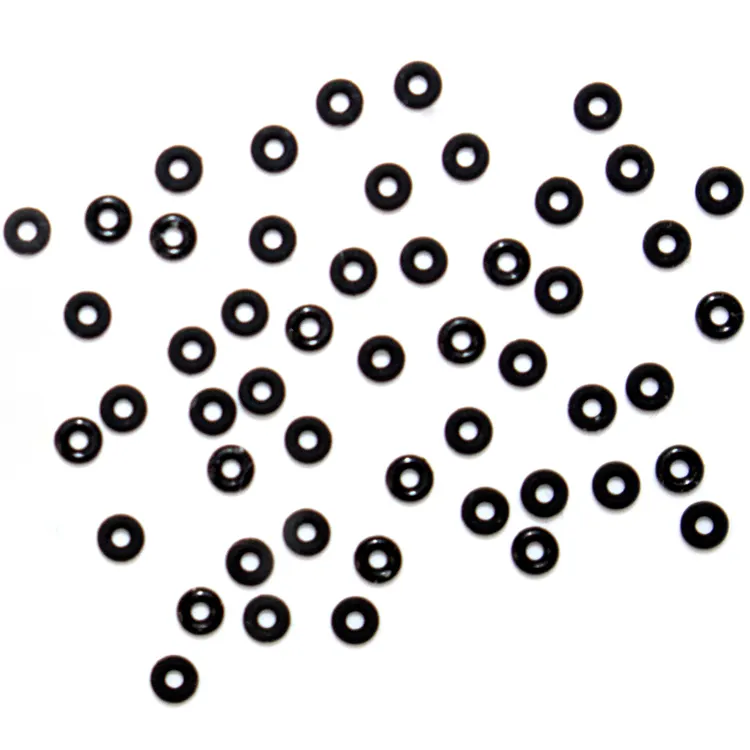

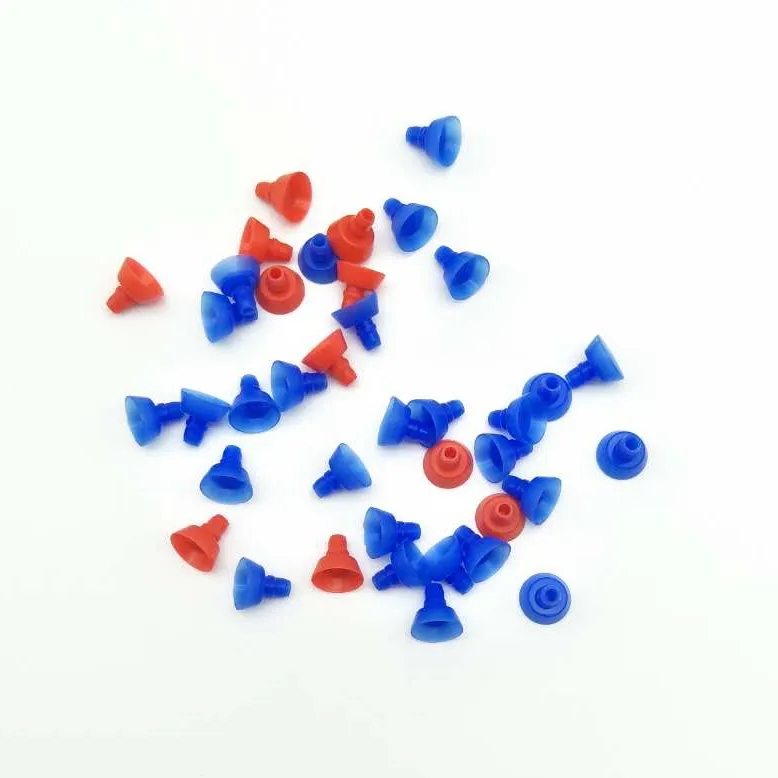

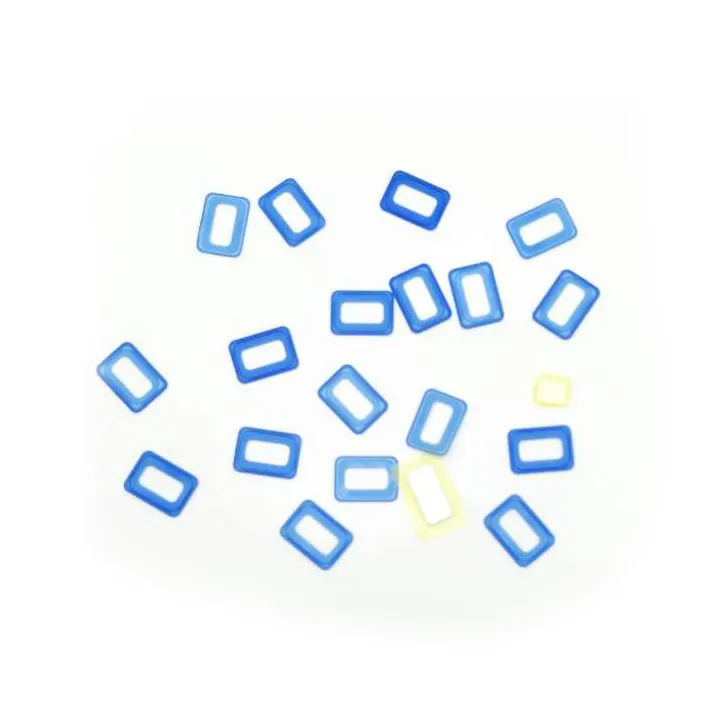

Application Fields for Vertical Rotary Micro LSR Molding
TYM vertical rotary micro LSR injection molding machines support micro LSR molding applications for small liquid silicone rubber parts that require small shot volume, stable material feeding, precise molding control, and rotary production layouts. They can be used for medical, baby care, automotive, consumer electronics, wearable device, and small precision silicone component projects.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
