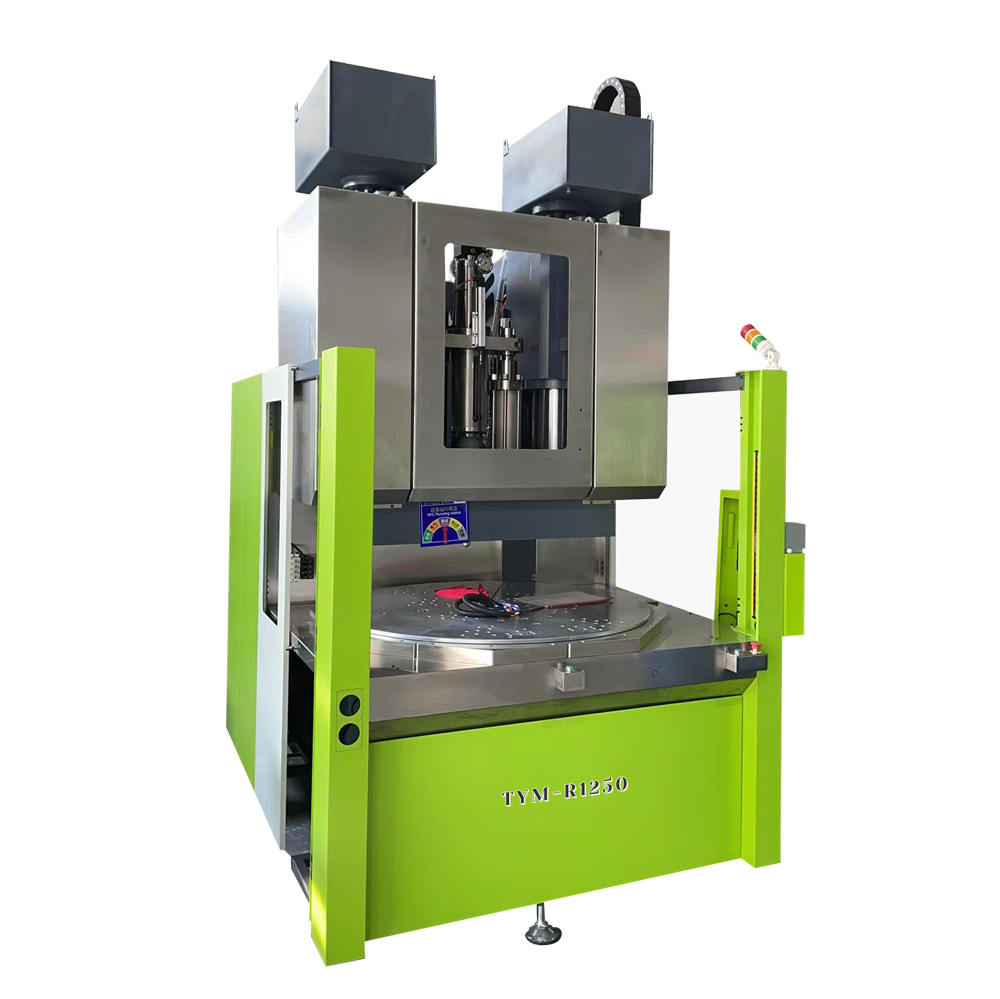

Vertical Turntable Lsr Injection Molding Machine
The machine features a vertical mold-opening and closing mechanism with a rotary table and dual lower molds integration, design for a single-operator station. Its servo-driven rotary ensures high repeatability in rotational positioning and speed. Ideal for producing LSR overmolded parts and components with complex part-removal structures. The configuration also facilitates robotic arm integration to achieve fully automated vertical production.
Core Advantages of Vertical Turntable LSR Injection Molding
TYM vertical turntable LSR injection molding machines are designed for liquid silicone rubber molding projects that require vertical clamping, rotary production layouts, stable injection control, and flexible mold configurations. They can be matched with LSR dosing systems, precision molds, and automation options to support silicone components for medical, automotive, consumer electronics, industrial, and OEM/ODM applications.
Vertical Turntable LSR Machine Specifications
Compare TYM vertical turntable LSR injection molding machine models by shot volume, injection rate, injection pressure, clamping force, and opening stroke. These specifications help manufacturers evaluate suitable rotary silicone molding machine configurations for liquid silicone rubber molding projects, insert molding, overmolding, and precision silicone part production.
| Machine Model | Shot Volume | Injection Rate | Injection Pressure | Clamping Force | Opening Stroke | Tie-Bars Space | Ejection Force | Ejection Stroke | Pump Pressure | Motor Power | Machine Weight | Machine Dimension |
| TYM-R1250 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 150T | 400-900mm Adjustable (Customized) | 500*580mm Φ 1250mm | 4T | 145mm | 20Mpa | 12KW | 6T | 2.3*2.3*3.4m |
| TYM-R1650 | 10,35,70,160,285g (custom made) | 150g/s | 700kg/cm² | 150T | 400-900mm Adjustable (Customized) | 600*680mm Φ 1650mm | 4T | 145mm | 20Mpa | 18KW | 6.3T | 2.4*2.4*3.4m |
Application Fields for Vertical Turntable LSR Molding

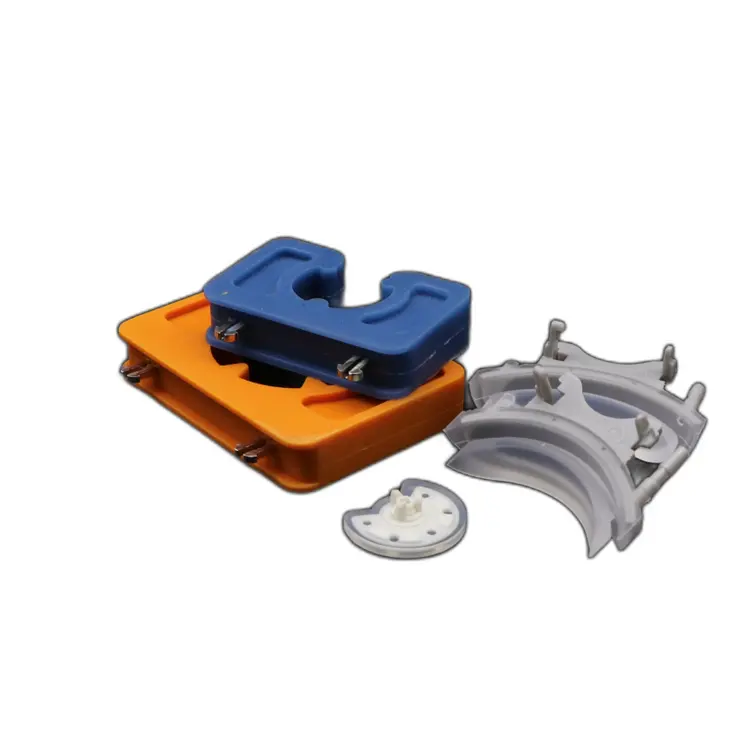

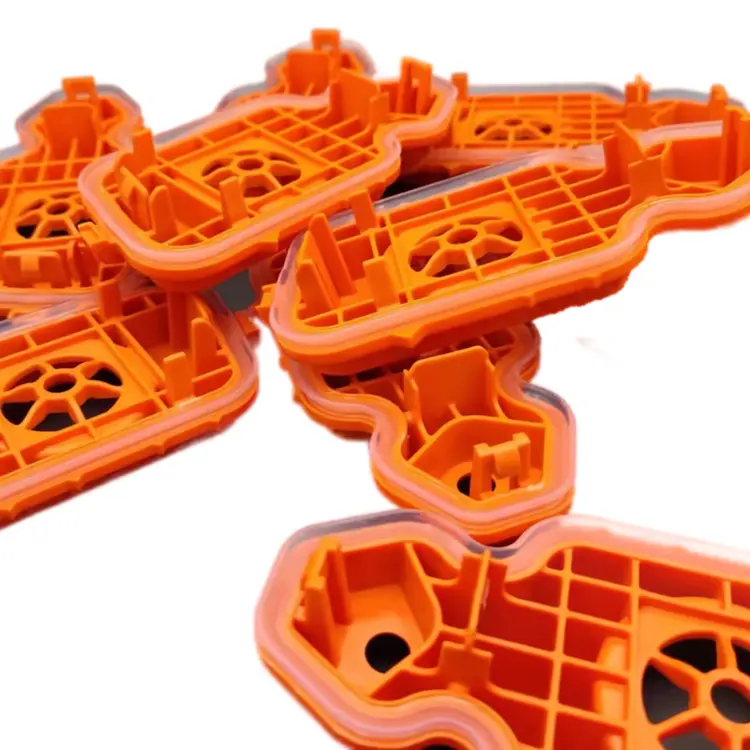

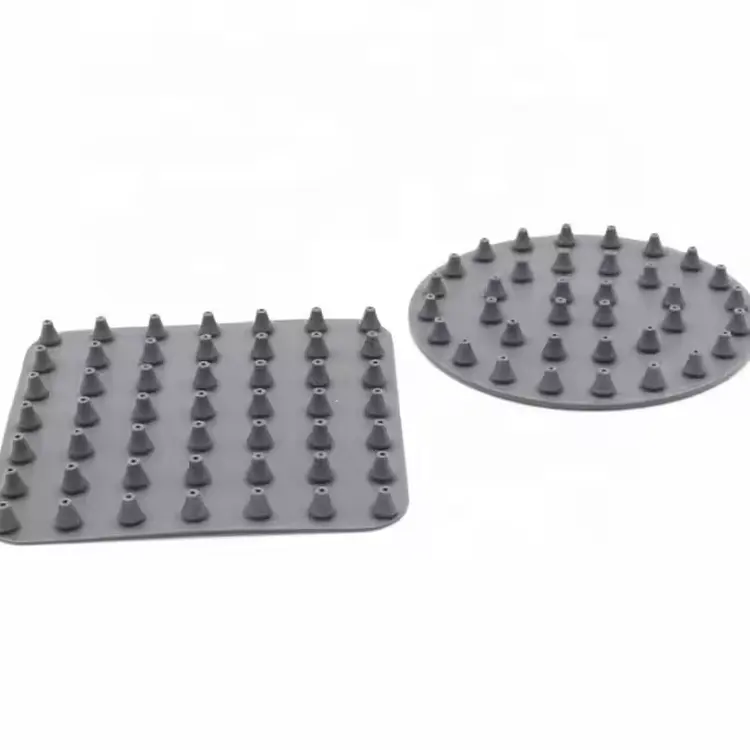

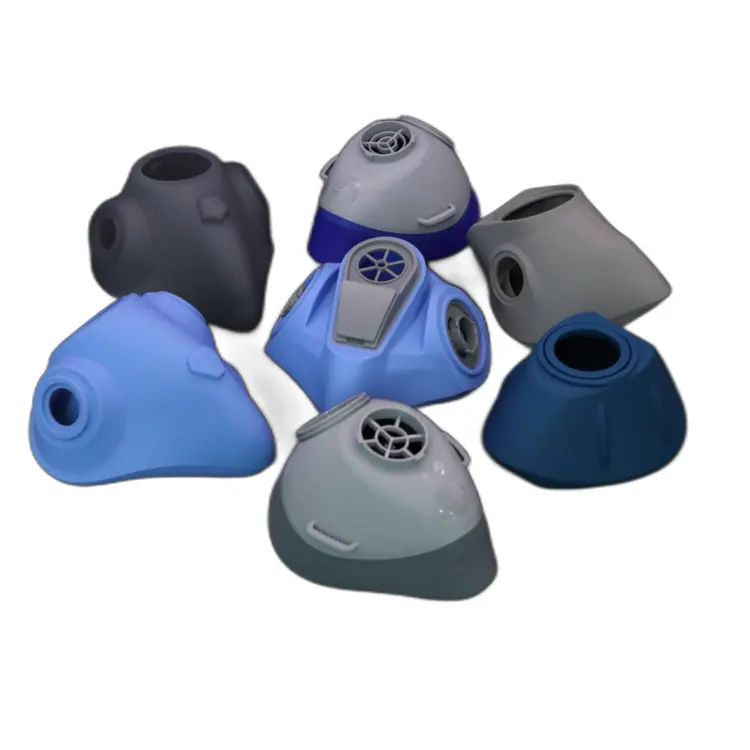

TYM vertical turntable LSR injection molding machines support liquid silicone rubber molding applications that require vertical clamping, rotary production layouts, stable injection control, and flexible mold configurations. They can be used for silicone components in medical, baby care, automotive, new energy, consumer electronics, and industrial applications.
FAQ
What materials can this machine process?
The machine is designed for liquid silicone rubber (LSR) injection molding applications.
What industries use this machine?
It is widely used in medical, baby care, automotive, electronics, industrial sealing, and consumer silicone industries.
Can the machine support automated production?
Yes. The machine can be integrated with robotic arms, automatic demolding systems, and automation production lines.
What are the advantages of the horizontal structure?
The horizontal design offers stable clamping performance, accurate mold alignment, and better compatibility with automated production systems.
Can the machine be customized?
Yes. Machine configuration, injection volume, automation systems, and mold compatibility can be customized according to customer requirements.
