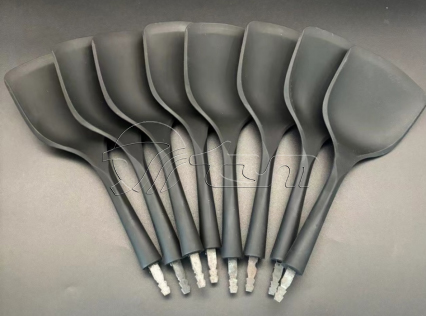

High quality silicone spatula

High quality silicone spatula by LSR Injection molding
Username:*
Email:*
Contact Number: *
Message:*
  • Product Detail

With the quality and safety of liquid silicone rubber (LSR) material, LSR products have been widely used in the kitchenware industry. In the kitchenware industry, silicone spatulas can usually withstand high-temperature cooking, with a heat-resistant temperature of up to 230°C. They can withstand high-temperature cooking such as frying, stir-frying, and deep-frying without melting or deforming. Silicone materials are non-toxic and harmless, and will not release harmful substances, ensuring the health and safety of food. Moreover, the soft material of the silicone spatula will not scratch the surface of the cookware. We introduce the LSR injection molding machine required for the high quality silicone spatula.


A set of high quality silicone spatula includes silicone part and plastic part. The production of these accessories needs to use one set of liquid silicone rubber injection molding machine and plastic injection machine. TYM provide the LSR injection machine and mold for high quality silicone spatula.

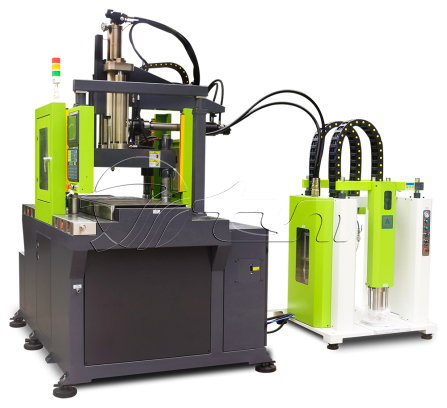

 150T Vertical LSR injection molding machine TYM-L7078 Specifications

Clamping Unit


Clamping force

150T

Opening stroke

600-900m

Tie-Bars space

700*780mm

Ejection force

4T

Ejection stroke

150mm

Others


Motor power

12kw

Voltage & current

380V,50hz

Pump Pressure

20mpa

Time schedule controller (TCON)

8 sets

Machine Weight

7.5T

Machine dimension

3.2*1.9*3.8m

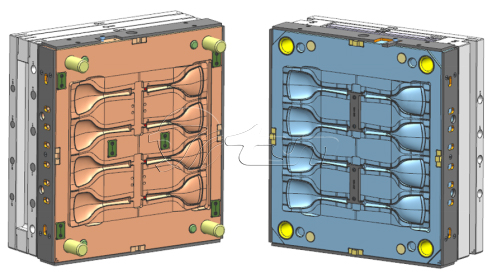

LSR Mold for silicone spatula

Mold details


Mold base material

P20 (customizable)

Mold core/insert material

S136 (customizable)

Cavity

8 cavities (customizable)

Runner

cold runner

Nozzle

8 pcs needle valve injection nozzle

Demolding

Manually



150T Vertical LSR injection molding machine TYM-L7078 can produce high quality silicone spatula. In order to meet the production requirement from the customers, TYM provide customized LSR injection molding production lines, including the LSR injection molding machines and LSR molds.
