Medical silicone Valve Mold
- Product Detail
| Mold information | |
|---|---|
| Mold core material | S136H |
| Mold base material | P20 |
| Number of cavity | 16 |
| Runner system | Cold Runner |
| Number of cold nozzle | 4 |
| Product name | Medical-grade silicone rubber valve |

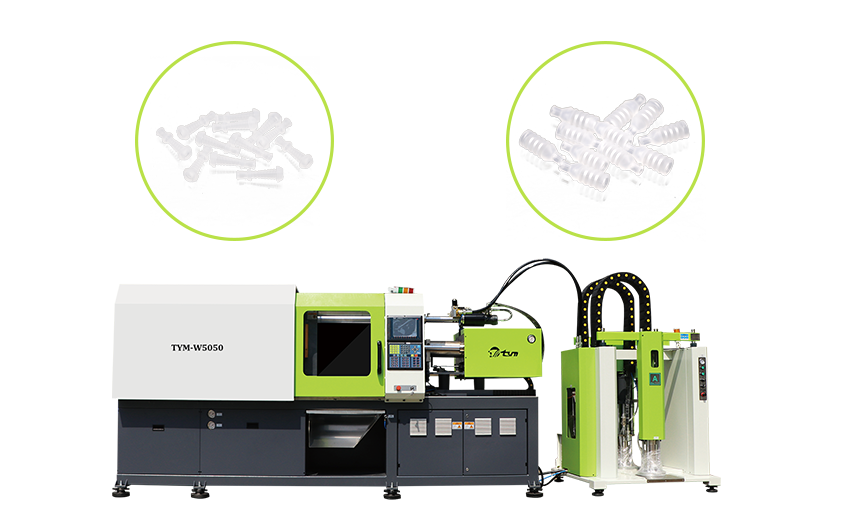

| Machine used | TYM-W5050 |
Details
With the quality and safety of liquid silicone rubber (LSR) material, LSR products have been widely used in the medical industry. In the medical field, every detail is related to the quality and safety of life. Medical silicone valve are usually made of materials such as medical grade plastic or silicone, with channels and a rotatable or sliding valve core.
By rotating or sliding the valve core, the fluid between different channels can be controlled to switch the flow direction of multiple fluids. The design of the flow valve usually takes into account characteristics such as sterility, biocompatibility, chemical stability and ease of operation to ensure its safety and effectiveness. We introduce the LSR injection molding machine required for the medical silicone valve.
A set of flow valve includes silicone valve and PP parts. The production of these accessories mainly uses two set of machines on the line, liquid silicone rubber injection molding machine and plastic injection molding machine. TYM provide the LSR injection machine and mold for best medical silicone flow valve.
Mold Design & Technology
Medical-Grade LSR Injection Molding Technology
The mold is specially designed for manufacturing high-precision medical silicone flow valves using liquid silicone rubber (LSR) injection molding technology. Medical-grade LSR materials provide excellent biocompatibility, chemical resistance, sterilization compatibility, and long-term stability, making them suitable for medical fluid control applications.
Precision Cold Runner System
The mold adopts an advanced cold runner system to keep the LSR material at a controlled low temperature before entering the heated cavity. This design prevents premature curing, reduces material waste, and ensures stable injection consistency during continuous production.
High-Precision Valve Structure Molding
The medical silicone valve mold is engineered with precision cavity machining and optimized gate design to achieve accurate fluid channel structures, smooth sealing surfaces, and stable dimensional tolerances. The mold supports the production of complex valve geometries required for medical fluid control systems.
Multi-Cavity High-Efficiency Design
The mold can be designed with multi-cavity layouts to improve production efficiency and maintain consistent part quality across all cavities. Combined with automatic LSR dosing systems, the mold supports stable mass production for medical silicone valve components.
Automation Integration
The mold is compatible with fully automatic vertical LSR injection molding machines, robotic arms, and automated demolding systems. Automated production reduces manual handling, improves cleanliness, and enhances production efficiency for medical manufacturing environments.
FAQ
Q1: What machines are needed to produce a complete set of silicone flow valve?
A: It needs the LSR injection molding machine to produce the silicone flow valve, the plastic injection machine to produce the PP parts.
Q2: One LSR machine can produce the silicone flow valve and the other silicone items?
A: yes, the 130T LSR machine TYM-W5050 can produce the many silicone items, only need to change the molds.
Q3: What's out-put per day for the silicone flow valve?
A: The different design and cavity, the capacity will be different, more details please contact to us.
