TYM-L6068-3RT Vertical 3RT LSR Injection Molding Machine
New- Product Detail
| Injection Unit | |
|---|---|
| Shot Volume | 10g（customizable） |
| Injection Rate | 150g/s |
| Injection Pressure | 700kg/cm² |
| Clamping Unit | |
| Clamping Force | 150T |
| Opening Stroke | 400-700mm |
| Tie-Bars Space | 600*680mm |
| Ejection Force | 4T |
| Ejection Stroke | 150mm/300mm |
| Others | |
| Pump Pressure | 20Mpa |
| Motor Power | 12KW |
| Machine Dimension | 2.7*1.8*3.6m |
| Machine Weight | 4.7T |
Smaller Vertical Liquid Silicone Rubber (LSR) injection molding machine
Customizable multiple ejection functions.The machine enabling replace the solidThemold with LSR molding.siliconemachine is equipped with a fixed heatedmold base, which Reduces mold develop-ment and tooling costs. It allows two moldsproducing different products to run simulta-neously using the same material. Suitablefor solid compression molding processes,including two-plate molds and multi-layermolds.
The main feature of the TYM-L6068-3RT:
Multiple sets of ejection mechanisms can be customized, paired with fixed heating moldbases, to reduce mold opening costs.
Molds for simultaneous production of two different parts using the same LSR material.
Suitable for converting solid compression molding processes (such as two-plate molds,multi-layer molds, etc.) to liquid silicone injection molding processes.
The vertical LSR machine for the applicable scope:
Liquid silicone products, which can with the insert, as like the plastic part, steel part etc. As sample: silicone diving mask, electric silicone drum Stick, silicone handle, silicone vibrators etc..
Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
Silicone high-voltage cable accessories,
Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

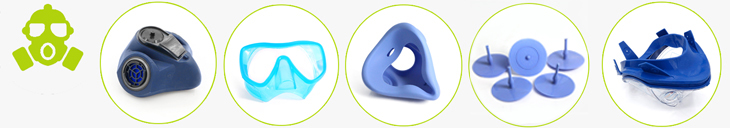

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.
Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
