TYM-SWL45 Horizontal Double-material LSR injection molding machine

TYM-SWL45
Username:*
Email:*
Contact Number: *
Message:*
  • Product Detail
Clamping Unit
Clamping Force19.6 T
Opening Stroke150-550 mm
Ejection Force7.8 T
Ejection Stroke150 mm
Middle Turn Angle180°
Side Ejection Force7.8 T
Side Ejection Storke150 mm
Injection Unit
Shot Volume165g ( LSR) / 165g ( LSR)
Injection Rate30 g/s (LSR) / 18ml/s (plastic)
Injection Pressure19.6 T
Others
Pump Pressure150 mm
Motor Power15KW
Heater Power30 KW
Mould Orientation Ring DiameterΦ 100 mm
Machine Weight4.3 T
Machine Dimension3.8*0.95*3.05 m

TYM-SWL45 Horizontal Double-material LSR injection molding machine

Double-material (plastic & LSR) injection molding machine

Double-material injection molding machine is new-type machine which can combine the technology of both of the LSR material and other material on a common machine.

The main feature of the double-material LSR molding machine:

  1. One common machine, two functions.

  2. Meet the requirements on double-material injection technology

  3. Save labor force, improve the efficiency and yield.

  4. Independent double injection system

  5. Satisfy the molding technology for both of the thermoplastic material and thermosetting material on one common machine

  6. The perfect combination on both of the plastic and LSR molding technology

LSR injection molding industry application

Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.

Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.

Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.

Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

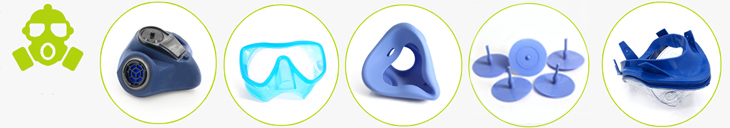

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.

Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
