Optimizing Production with Horizontal LSR Injection Molding Machines|Silicone Nipple Mold

Introduction of silicone nipple mold

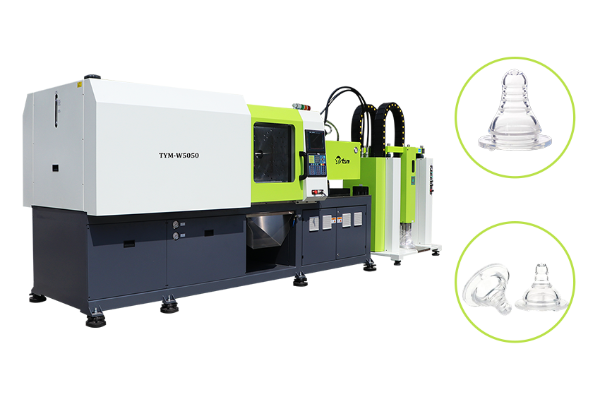

 Our custom silicone nipple mold solution is designed for high-efficiency, high-quality production using a 130T Horizontal LSR injection molding machine. This setup ensures seamless automation, making it ideal for clients seeking a fully automated production process.

The silicone nipple mold features an 8-cavity cold runner system, optimized for liquid silicone rubber (LSR) material, which guarantees precision and consistency in every product.

With this system, we achieve a cycle time of approximately 30 seconds per shot, producing 8 units simultaneously. This translates to an impressive output of 960 pieces per hour, ensuring high-volume production without compromising on quality.

Production of silicone pacifier equipment

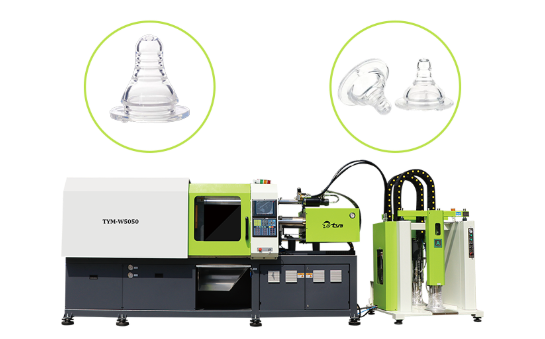

A horizontal lsr injection molding machine works like a medical syringe, using a very exact and controlled injection process to make silicone baby bottle nipples.

First, the horizontal lsr injection molding machine mixes and blends the liquid silicone material evenly using a dynamic and static mixing system.

Then it is injected into a closed mould through a direct-pressure injection system. Inside the mould, the liquid silicone becomes solid, creating the final silicone infant nipple with a smooth and even shape.

The main benefits of horizontal lsr injection molding machine

High precision injection-the silicone molding machine uses a special valve system to control the injection process, making sure that the material doesn't leak and that as little as possible is wasted. This makes sure that each nipple for baby bottles is always the same shape and is always high quality.

The whole process is fully automated, so means less need for manual labour and more efficiency. This not only makes them faster but also makes sure that every baby bottle nipple is safe and works well.

The horizontal lsr injection molding machine uses a direct-pressure mold clamping mechanism combined with a horizontal injection structure. This setup ensures that the material is spread evenly, preventing air bubbles or uneven thickness.

The silicone molding machine controls the amount of silicone that goes into each nipple, so that each one is the same size and softness. This is important for maintaining product quality and making sure that every baby gets the same great experience every time they use it.

Achieving Fully Automated Silicone Nipple Production

For manufacturers looking to maximize efficiency, pairing a horizontal LSR injection molding machine with a well-designed silicone nipple mold is essential. Here’s how to achieve fully automated production:

Cold Runner System: The mold must feature a cold runner design to eliminate burrs and ensure smooth ejection. This design allows for fully automated production without the need for manual trimming.

Blow-Off Mechanism: To automate the ejection process, the silicone nipple mold should include a blow-off device. This ensures that the finished nipples are released from the mold without manual intervention.

Robotic Integration: For more complex designs, integrating a robot to pick up the finished products can further streamline the production process.

By combining these elements, manufacturers can achieve a fully automated production line that delivers high-quality silicone nipples at scale.

About Baby Care Industry

1.Silicone Baby Pacifier

Name: Liquid silicone pacifier silicone molding machine

Model:TYM-W4545

For the production of this product silicone molding machine features: liquid silicone nipple injection moulding machine, direct pressure type open and close the mould, horizontal injection structure, with rapid mould adjustment, position control more accurate function, more suitable for fully automatic motion release silicone products production.

2.Baby bottle nipple

Name: Liquid Silicone Pacifier Injection Moulding Machine

Model: TYM-W4545

For this product production silicone molding machine features: liquid silicone soother injection moulding machine, horizontal injection structure new optimized one-piece machine design, to meet the needs of a variety of automated production processes, shorten the time of opening and closing the mould, higher production efficiency. It can achieve automatic demoulding.

3.Silicone milk bottle

Name: Liquid Silicone Milk Bottle Injection Moulding Machine

Model: TYM-W4545

For this product production machine features: liquid silicone milk bottle injection moulding machine, using automatic feeding, direct pressure mould opening and closing, horizontal injection structure, with fast mould adjustment, easy to clean the rubber, position control more accurate and other functions, the production process is fully closed, safe production more assured. The production process is fully closed, which is safer and more secure. It can be fully automated without contacting the milk bottle demoulding.

4.PPSU milk bottle

Name: Liquid silicone PPSU milk bottle injection moulding machine

Model: TYM-W5058

For the production of this product machine features: liquid silicone PPSU covered milk bottle injection moulding machine, using automatic feeding, direct pressure mould opening and closing, horizontal injection structure, can be used for silicone milk bottles for one-time molding, can also be placed into the pre-fabricated parts for the second package of rubber moulding processing and production, easy to operate, fast production speed, high output, short molding time, can be equipped with a robot to automatically demould and take the pieces.

5.Silicone spoon

Name： Liquid silicone covered spoon injection moulding machine

Model: TYM-W5058

For the production of this product machine features: liquid silicone covered spoon injection moulding machine, using automatic feeding, vertical injection structure, downward closing, double slide out of the mould, can be installed at the same time one upper mould and two lower moulds, so that the production efficiency is higher.

It can be used for one-time moulding of silicone products, and also can be used to put the prefabricated parts into the second overmoulding process. Different silicone moulds are available.

Conclusion

Using advanced injection moulding technology, manufacturers can efficiently and accurately produce large quantities of liquid silicone nipples. The process makes sure that each nipple for baby bottles is soft, durable, and clean, providing a safe and comfortable feeding experience for infants.
